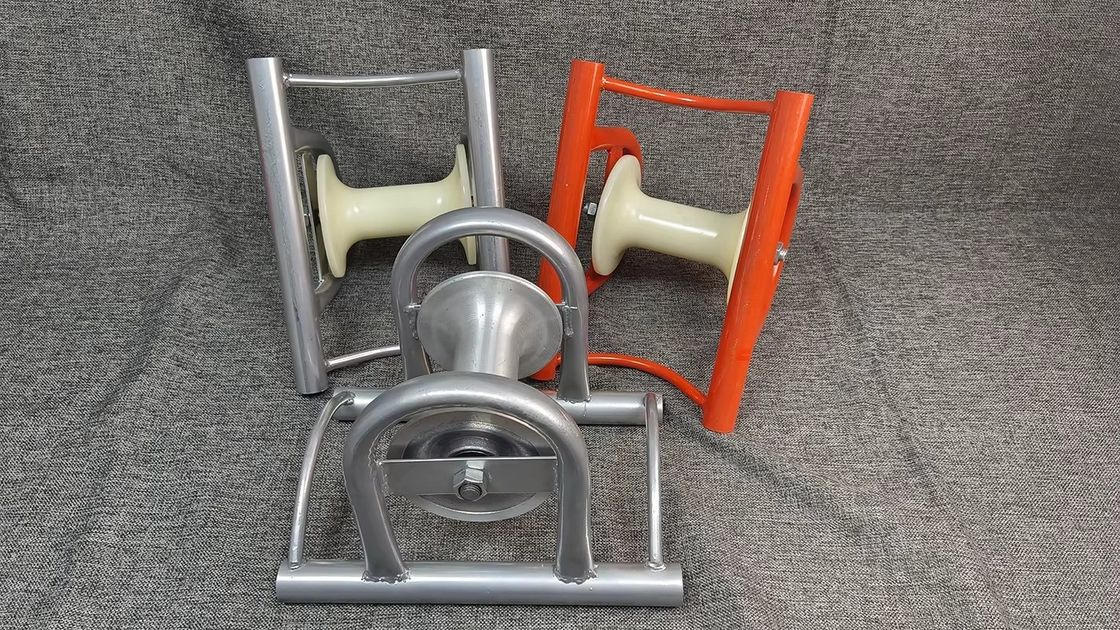

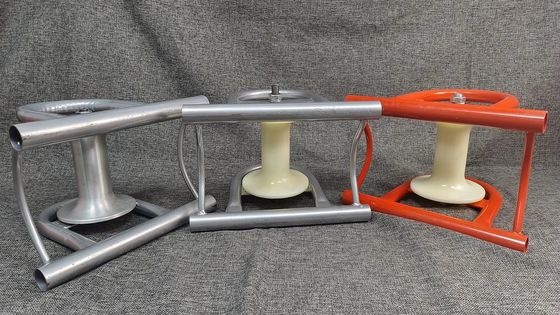

Cable Block Small Cable Roller for Wire Rope Cable Pulling Rollers

Cable Block Small Cable Roller for Wire Rope Cable Pulling Rollers
Cable Block Small Cable Roller for Wire Rope Cable Pulling Rollers
Cable Block Small Cable Roller for Wire Rope Cable Pulling Rollers Cable Block Small Cable Roller for Wire Rope Cable Pulling Rollers Cable Block Small Cable Roller for Wire Rope Cable Pulling Rollers

Large Image :  Cable Block Small Cable Roller for Wire Rope Cable Pulling Rollers

Product Details:
Place of Origin: Jiangsu , China
Brand Name: XINYA
Certification: ISO9001
Model Number: -
Payment & Shipping Terms:
Minimum Order Quantity: 5 pieces
Price: get lastest price
Packaging Details: carton
Delivery Time: 10 days after payment
Payment Terms: L/C,T/T,,Western Union
Supply Ability: 1000 Piece/Pieces per Month
Contact Now

Cable Block Small Cable Roller for Wire Rope Cable Pulling Rollers

Description
Rated Load: 10KN Weight: 5KG
Item: Straight Line Electric Overhead Bridge Cable Pulling Laying Rollers Application: Cable Pulling Project
Warranty: 1 Year Wheel: Steel

Cable Block Small Cable Roller for Wire Rope Cable Pulling Rollers


Cable pulley widely used for the cable laying contractor, utility and electricity supply industry – this includes straight cable
rollers, corner cable rollers, triple cable rollers and specialist cable rollers for pulling underground cables into trenches .
Cable rollers should always be used when pulling cables.

Straight cable runs are pulled in using straight cable rollers suitably placed in the cable trench to prevent the cable being
dragged on the trench bottom or in mud - cable roller spacing is dependent on cable type being laid and the cable pulling tension along the route. Leading cable rollers are used to support the cable over the entire drum width immediately before being pulled into the trench.
Cable Block Small Cable Roller for Wire Rope Cable Pulling Rollers 0

Specification of cable block small cable roller for wire rope cable pulling rollers:
1.Setting the cable
2.Change the angle of the cable
3.Used in the engineering machinery
4.Used to support conductors, OPGW,ADSS,communication lines

item
cable roller
Length
300mm
width
230mm
height
260mm
Cable pulley Features:
1)We manufacture a lot of models Cable pulling block for different uses in the overhead transmission line construction.
2) The cable pulley is used to support conductors, OPGW,ADSS, communication lines
3) The cable pulley is made from high strength MC nylon, aluminum, the frame are made of galvanized steel.
4) High strength and flexibility, easy to use, light weight, wearresisting, and long service life.
Cable pulley application:
For cable change the direction of the extended release, protect the cable from friction, according to the needs of multiple
combined into any corner bend.
1) Usage: For delivery of underground cables, used in extended release cable for high- speed single round of linear wheel bearings are not to hurt the cable wheel material steel aluminum cattle dragon can be based on your need to select.
2) The cable pulley can be installed on a different cable.
3) Pulley material classification: a steel pulley with spherical bearings, the second nylon wheel with plain bearings, aluminum alloy wheel with sliding bearings.
Cable Block Small Cable Roller for Wire Rope Cable Pulling Rollers 1
