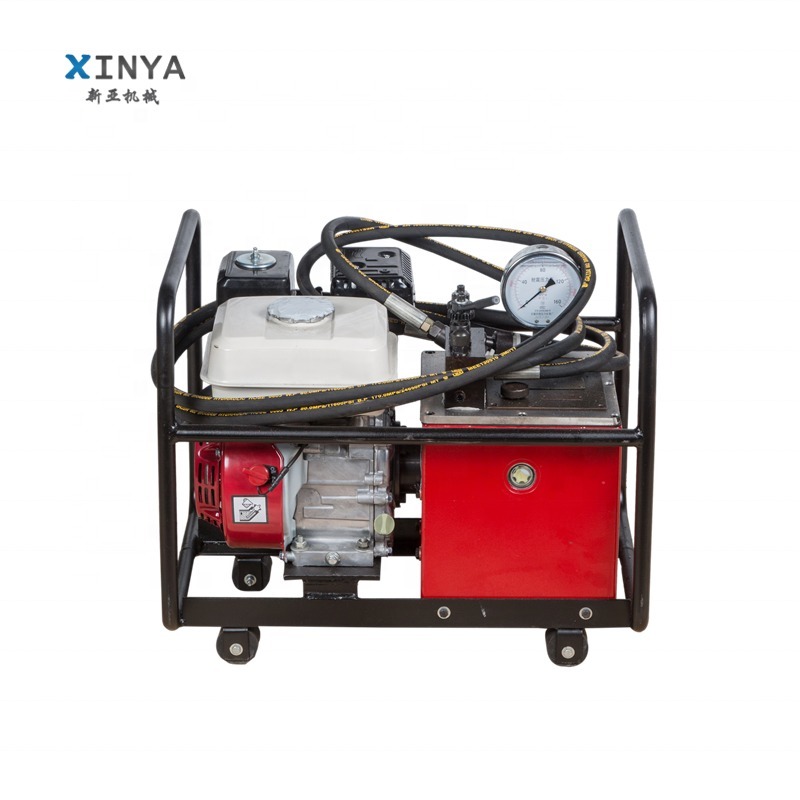

Honda 5.5HP Hydraulic Power Unit 80MPa 1.6L/min

Brand Name: XINYA
Model Number: JYB-80-2Q
MOQ: 1
Price: $900-1,000
Detail Information
Place of Origin:
Jiangsu, China
Rated Pressure:
80 Mpa
Weight:
60 KG
Rated Flow:
1.6 L/min
Max Pressure:
85 MPa
Tank Volume:
8 L
Engine Power:
5.5 HP
Engine Model:
Honda GX160
Fuel Type:
Gasoline
Stroke:
4 Stroke
Cylinder Type:
Single Cylinder
Cooling Style:
Air-cooled
Starting System:
Recoil/Electric Key Start
Displacement:
250cc
Max Output Pressure:
100 Mpa
Pump Structure:
Plunger Pump
Highlight:

Honda 5.5HP hydraulic power unit

,

80MPa hydraulic crimping tool

,

1.6L/min hydraulic power unit

Product Description
Hydraulic Power Unit with HONDA Gasoline Engine 5.5HP
Honda 5.5HP Hydraulic Power Unit 80MPa 1.6L/min 0 Honda 5.5HP Hydraulic Power Unit 80MPa 1.6L/min 1 Honda 5.5HP Hydraulic Power Unit 80MPa 1.6L/min 2
Application

This Yamaha Hydraulic Pump provides power for cutting tools, hydraulic compressors, punching machines, and other construction machinery. Ideal for field operations in electric power, railway, rescue, construction, and related industries.

Specifications
  • Fuel: Gasoline
  • Stroke: 4 stroke
  • Cylinder: Single Cylinder
  • Cooling Style: Air-cooled
  • Start: Kick Start
  • Displacement: 250cc
  • Starting System: Recoil/Electric Key start
Features
  • Easy to operate with high safety standards
  • Precision machining technique
  • Extended machine lifespan
  • Elegant and functional design
  • Wide application scope
  • Reliable performance with minimal malfunctions
Technical Data
Model No. JYB100Q
Max Pressure 85MPa
Rated Pressure 80MPa
Rated Flow 1.6L/min
Engine Honda Gasoline Engine GX160 5.5HP
Oil Tank 8L
Weight 60KG
Honda 5.5HP Hydraulic Power Unit 80MPa 1.6L/min 3 Honda 5.5HP Hydraulic Power Unit 80MPa 1.6L/min 4 Honda 5.5HP Hydraulic Power Unit 80MPa 1.6L/min 5 Honda 5.5HP Hydraulic Power Unit 80MPa 1.6L/min 6 Honda 5.5HP Hydraulic Power Unit 80MPa 1.6L/min 7
