Product Details:
|
| Application: | Cable Pulling | Rod Diameter: | 4-16mm |
|---|---|---|---|
| Material: | Fiberglass Reinforced Plastic | Length Of Pulling Rod: | 50-300M |
| Rod Inner: | Extruded By Fiber Glass And High Strength Resin At High Temperature | Rod Outer: | High Density Polyethylene Coating |
| High Light: | cable laying equipment,cable tower machine |
||

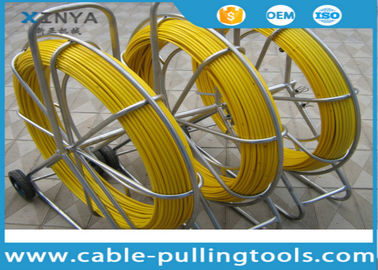

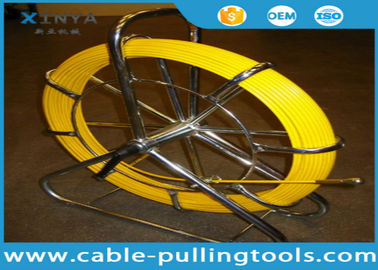

Underground Cable Tools High Strong FRP Duct Rodder Electric Cable Duct Rod
Brief Introduction
Duct rodder, also called fiberglass duct rodder, is composed of three parts: internal copper/steel wire, fiberglass rod, and outer polyethylene coating. Each duct rodder comes with a sturdy steel frame with different sizes according to the diameter and length of the rod. Some frames are equipped with wheels, also called wheeled duct rodder, which makes it convenient to move at the job site. The fiberglass rod is the basic element of the duct rodder, large proportion of high quality glass fiber (80%) is added, which ensures its stability under shear stress. And polyester resin is embedded together to form a compact bound core.
FRP duct rodder is an ideal tool for underground jobs such as pulling cables and lines through conduits, tubes, pipes or ducts. For its high tensile strength, wear-resistant surface and elastic body, it is widely used in the fields of telecommunication, electric power, water conservancy, etc.
Material:
Frame finish: powder coated, zinc plated.
Specification:
Features
1. Strong non-conductive fiberglass rod construction
2. Stainless steel drawing head
3. For longer conduit runs and underground duct
4. Rugged tubular steel reel with adjustable position.
5. Feed device allows rod to feed out or be wound back onto reel with easy pushi or pull of rod
Technical Data
|
Specification |
Rod Diameter (mm) |
Φ4,Φ4.5,Φ5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16 |
|
Rod Length (m) |
30~500 |
|
|
Frame Spec.(mm) |
1300x450x1330,1200x420x1220,980x350x1000,680x240x700, etc |
|
|
Wheel Diameter(mm) |
300mm |
|
|
Wall thickness of Metal Frame |
2.2mm |
|
|
Color |
blue, yellow, red, white etc |
|
|
Material |
Rod Inner |
Extruded by fiber glass and high strength resin at high temperature |
|
Rod Outer |
High Density polyethylene coating |
|
|
Iron Frame |
Steel with high-temperature sprayed plastic or Spray coating |
|
|
Wheel |
rubber |
|
|
Brake |
Yes |
|
|
Drawing head |
copper |
|
|
Physical Characters |
Density |
55g/m |
|
Working temperature |
-40°C to +80°C |
|
|
Breaking tension |
100kg |
|
|
Bending Radius |
295mm |
|
|
Technology |
Pultrusion |
|
|
Packaging |
Inside |
plastic woven strip wind around the frame |
|
Outside |
Wooden pallet and Woode |
The copper wire inside the rod make it traceable and it is convenient for working in the under earth pipes.
We can print the meter mark on the rod and the website or others can also be printed on it.
