|Type:||Hydraulic Puller Tensioner||Weight:||1700kg|
|Oversize:||3560*1600 *2220 Mm||Maximum Tension:||30KN|
|Max Continual Tension:||25KN||Max Pulling Speed:||5 Km/h|
|Max Diameter Of Wire:||32mm|
block and tackle hoist,
cable hoist puller

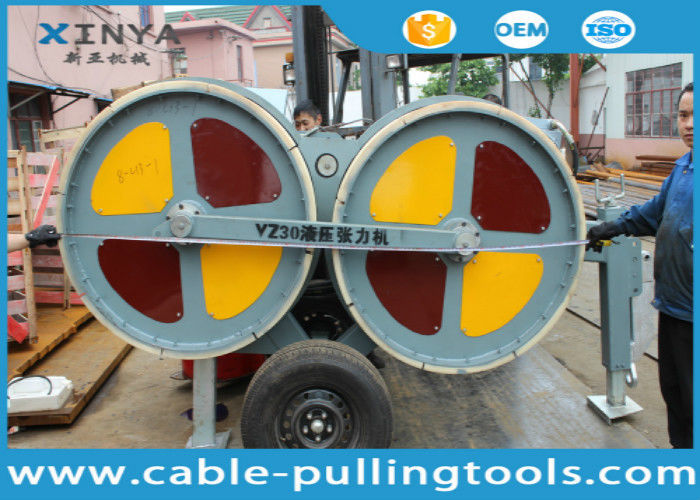

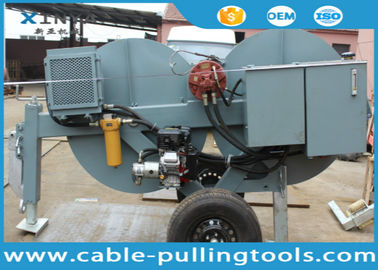

Supply 30KN Hydraulic Cable Tesnioner In Overhead Transmission
A transmission line tension stringing and aerial cableway erection job tension of the tension machine. The liner is fixed round groove of the main driven wheels arranged in parallel composition, and a diameter of the driven wheel driving wheel diameter 0.6 to 0.95, the master, the driven wheel two further fixed wheel and two or more groove substrate. When the wire is rotated by external traction rounds, only the large diameter drive wheel braking force that is applied. Selection round slot liner material of different coefficient of friction the wire by force, to avoid wire lantern, to protect the wire and release the tension wheel uniform wire. While the whole weight, smaller in size and lower cost.
Automatic hydraulic tensile machine manufacturer in Germany ZECK Features: Each friction wheel is driven by a hydraulic motor planetary gear transmission efficiency, frustrated not stop and then start producing sheet when the wire damage. Friction wheel with a special pad to protect the wires, replace the easy life assurance work up to 1200 hours. Patents have ground and pressure line features automatic rope fixed.
Supply 30KN Hydraulic Cable Tesnioner In Overhead Transmission is used to string various conducts and earthwire.
1. Bullwheel with wearproof MC nylon lining segments.
2. infinitely variable tension control and constant tension conductor stringing .
3. it adapt Italian reducer .
4. spring applied hydraulic released brake acts automatically in case of hydraulic
failure to ensure safety
1. vEngine :Domestic water –cooled engine .
2. Main pump/motor ,Chinese famous branded pump and motor .
3. Reducer :RR(Italian )
4. Radiator: AKG
5. Hydraulic instrument :
6. It can choose import engine.
3560 ×1600 ×2220
|Max Continual Tension(KN)||25|
|Diameter of Tension wheel(mm)||1200|
|Solt No. of Tension wheel||5|
|Rated Pulling Force (KN)||30|
|Max Pulling Speed(km/h)||5 km/h|
|Max dia of wire||Φ32mm|
|Engine Power||11KW/ 2200 r/min|
