Product Details:
|
| Rated Load: | 30KN | Weight: | 0.65kg |
|---|---|---|---|
| Type: | Swivel Joint | Package: | Wood Box |
| Application: | Pulling Rope | Item: | Overhead Line String Swivels |
| Product Name: | 3 Ton High Strength Rotatable Cable Connector For Pulling Rope During Transmission Line | ||
| Highlight: | block and tackle hoist,cable hoist puller |
||

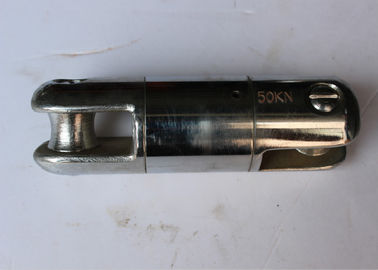

3 Ton High Strength Rotatable Cable Connector for Pulling Rope During Transmission Line
Brief Introduction
1.High tensile galvanized steel
2.Rated load: 5~320kN
3.Weight: 0.2~19.7kgs
4.Suitable for pulling rope

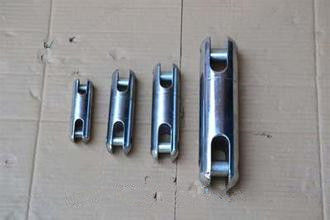

High strength rotatable steel cable connector
Application
In transmission line, traction of wire or underground cables, it is used to connect with the net sleeve and wire rope, in order to release wire rope twisting.It adopts high strength stainless material.It is high strength, light weight, and good looking.and it can smoothly go through the machine traction pulley and the tension machine.
The swivel joints are suitable to connect the pulling rope to the mesh sock joint mounted on the conductor, they are mounted on thrust bearings and they are designed to avoid torsion stain accumulation. They are made of highly tensile galvanized steel, the special design can bear the high radial loads, which occur during the passage over the pulleys.
Features
1)high strength
2)light weight.
Technical Data
|
Model |
Dimensions (mm) |
Rated load |
Weight |
||||
|
|
A |
B |
C |
D |
E |
(kN) |
(kg) |
|
SLX-0.5 |
19 |
61 |
40 |
8 |
9 |
5 |
0.2 |
|
SLX-1 |
30 |
100 |
70 |
12 |
13 |
10 |
0.4 |
|
SLX-2 |
35 |
120 |
90 |
14 |
14 |
20 |
0.55 |
|
SLX-3 |
37 |
129 |
95 |
16 |
16 |
30 |
0.65 |
|
SLX-5 |
42 |
154 |
116 |
18 |
17 |
50 |
1.5 |
|
SLX-6.5 |
51 |
185 |
140 |
20 |
19 |
65 |
2.0 |
|
SLX-8 |
57 |
220 |
165 |
24 |
22 |
80 |
2.4 |
|
SLX-13 |
62 |
248 |
192 |
26 |
24 |
130 |
3.5 |
|
SLX-18 |
75 |
294 |
222 |
26 |
26 |
180 |
7.2 |
|
SLX-25 |
85 |
331 |
251 |
30 |
30 |
250 |
10.6 |
|
SLX-32 |
85 |
346 |
264 |
38 |
30 |
320 |
19.7 |
