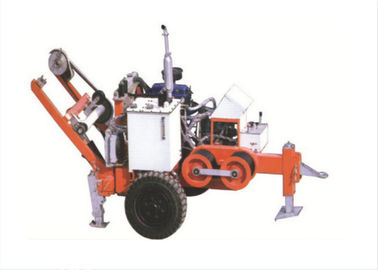

High voltage power transmission 30KN linepull hydraulic cable puller for overhead power line

High voltage power transmission 30KN  linepull hydraulic cable puller for overhead power line
High voltage power transmission 30KN  linepull hydraulic cable puller for overhead power line High voltage power transmission 30KN  linepull hydraulic cable puller for overhead power line

Large Image :  High voltage power transmission 30KN linepull hydraulic cable puller for overhead power line

Product Details:
Place of Origin: Jiangsu,China
Brand Name: XINYA
Certification: ISO
Model Number: SA-YQ30
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: get latest price
Packaging Details: 2 sets with 20GP
Delivery Time: 30 workdays after payment
Payment Terms: L/C, T/T, , Western Union, Western Union
Supply Ability: 5 sets/month

High voltage power transmission 30KN linepull hydraulic cable puller for overhead power line

Description
Type: Hydraulic Puller Application: Electrical Cable Release Or Pulling
Oversize: 3200×1600×2000 Mm Weight: 1500 Kg
Maximum Tension: 30 KN Max Continual Tension: 25 KN
Max Velocity: 5 Km/h Max Dia Of Wire: 13mm
Warranty: One Year Number Of Grooves: 7/7/8
High Light:

wire rope pulley block

,

cable hoist puller

High voltage power transmission stringing machine 30KN  linepull hydraulic pressure cable puller for overhead power line



Application

Suitable for transmission line wire, ground, OPGW Composite Ground Self-supporting ADSS fiber optic cable and fiber optic cable tension stringing process as traction.

Together with tension machine, this model allows for the tension stringing of 220kV lines in mountainous and hilly areas and can be used for the traction stringing of OPGW or ADSS cable in various terrains.



Feature

  • Infinitely variable speed and line control  ,the pull in the rope can be read on the line pull gauge .
  • The max pull for conductor –stringing operation can preset ,automatic overpull protection system .
  • Spring applied –hydraulic release brake acts automatically in case of hydraulic failure ensure to safety .
  • Attached reel winder with automatically level wind .load and unload conveniently .

Main component

  • Chinese famous diesel engine.
  • Main pump:SAUER –SUNDSTRAND pump .main motor : SAI techniques product .
  • Radiator:AKG
  • Hydraulic instrument:
  • Mating with model GSP950 drum (order number :07125A).

Quality Control

We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.



Our Values

1: Take First-Class Quality as Target and First-class Service.

2: As Responsibility, To Succeed By Scientific Management.

3: Customer in Heart, Quality in Hand, Technology in the Lead.



Technical Data

Hydraulic puller.pdfHydraulic puller.pdf

Maximum linepull (kN)
30
Continuous linepull (kN 25
Maximum linespeed (km/h) 5
Bullwheel bottom of groove diameter(mm) Φ300
Bullwheel grooves number 7
Maximum suitable steelrope diameter (mm) Φ13
Maximum through connector diameter (mm) Φ40
Engine power /speed (kW/rpm) 31/2200
Dimensions (mm) 3200×1600×2000
Weight (kg) 1500



Practical Application

High voltage power transmission 30KN  linepull hydraulic cable puller for overhead power line 0





High voltage power transmission 30KN  linepull hydraulic cable puller for overhead power line 1
