Product Details:
|
| Capacity: | 50 KN | Rated Power: | 4 KW |
|---|---|---|---|
| Weight(KG): | 160 | Dimension(mm): | 1050*850*630 |
| Maximum Pulling Speed: | 9 M/min | Engine: | Electric Engine 220V |
| High Light: | cable stringing equipment,wire pulling tools |
||

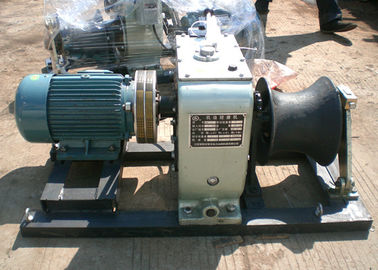

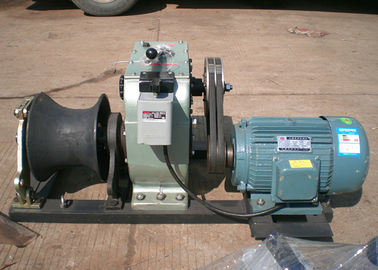

Cable Pulling Tools 5 Ton Electric Wire Rope Cable Winch Puller 220V For Cable Pulling
Application
It is used in power transmission and distribution engineering, telephone construction tower erection, traction cable, line, hoisting tools or heavy objects, the electric winch is driven by a belt, effectively prevent the damage of overload, there are pros and cons and the speed of file, anti reverse gear moment to ensure construction safety.Winch can be modified as per requirement, such as changing curve capstan into straight even
cylindrical shape and coming with steel rope.
Characteristic
Small Volume & Compact Structure.Light Weight,Easy to Transport.High Efficiency,Save Labor.Widely Used,pulling,hoisting,lifting and so on.Safe & Reliable,Interlock Brakes System.
Maintenance and safe use
1. Engine use and maintenance, according to the machine instructions.
2. Lifting shall not exceed in line with use.
Lubricating oil surface must be kept within 1/4
3. gearbox, before using the machine outside the bearing should add oil.
4. Automatic burning cars and interlock brakes, should always pay attention to the wear of the friction plate, the automatic braking gear and back tighten loose gap of 0.5 mm, if the gap is greater than 1.5 mm, you must replace the friction plate, or likely to cause accidents.
5. Automatic brake load the gearbox, automatic normal lifting, due to the reverse gear is stuck, there is no "beep beep" sound when the back loose.
6. The bearing support frame is anchored on both sides of the reel anchor point, it can not be used as an anchor point to another location.
7. After the long-distance transport aircraft, before use, must be a detailed examination of the various components fastening screws loose, ministries parts is stagnant leak. Gearbox ZL4 aluminum body with screws on it should not be too tight and unnecessary disassembly, but can not use a hammer.
Quality Control
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.
Our Values
1, Take First-Class Quality as Target and First-class Service.
2, As Responsibility, To Succeed By Scientific Management.
3, Customer in Heart, Quality in Hand, Technology in the Lead.
Technical Data
| Model Type | Engine Power | Gear | Pulling Speed(m/min) | Pulling Force(Ton) |
| JJM5-D | Electric Engine | Slow | 5 | 5 |
| Quick | 9 | 3 | ||
| Reverse | 3 | No lifting |
