|Application:||Cable Pulling||Capacity:||80 KN|
|Rated Power:||4 KW||Weight(KG):||180|
|Dimension(mm):||1050*850*630||Maximum Pulling Speed:||10 M/min|
|Engine:||Electric Engine 220V||Name:||Heavy Duty 8 Ton Wire Rope Cable Winch Puller With Electric Engine|
cable drum trailer,
cable tower machine,
8 Ton Cable Winch Puller

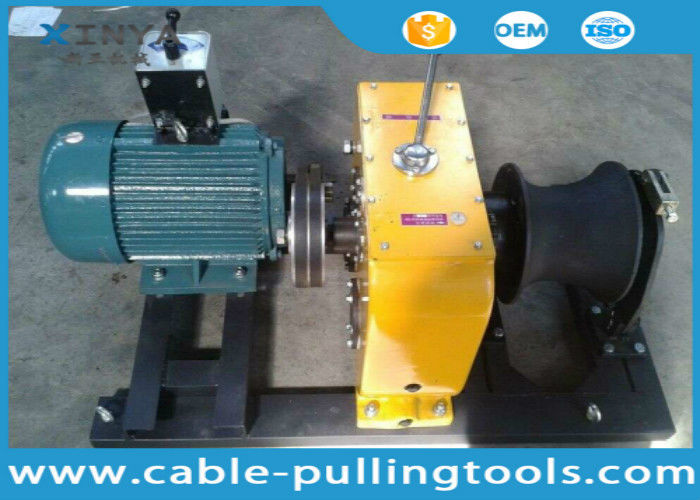

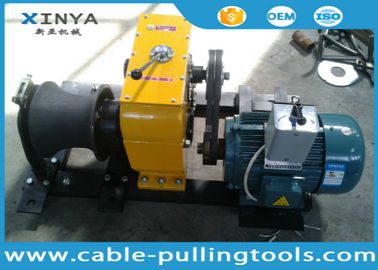

Heavy Duty 8 Ton Wire Rope Cable Winch Puller With Electric Engine
Mortor winch is set up high-voltage transmission lines and laying of aerial construction machinery underground cables, smooth, convenient for Tower Group legislature, set up guide (land) lines, lifting, pulling in a variety of complex conditions. Motor cutter grinding widely used in electricity, telecommunications line construction group established tower or motor actinomycetes, also in place for lifting and pulling heavy objects, suitable for field sites without electricity, the use of flexible construction, docks and so on. The experiments and field practice has proved that with a reasonable structure, small size, light weight, utilitarian large, flexible operation, easy handling, etc., the majority of electric power, telecommunications operators welcome. Motor cutter grinding force divided by diesel powered winch and winch motor gasoline.
Small Volume & Compact Structure.Light Weight,Easy to Transport.High Efficiency,Save Labor.Widely Used,pulling,hoisting,lifting and so on.Safe & Reliable,Interlock Brakes System.
1, before the boot, you must first open the cutter mill drive clutch, and the before and after change lever to the neutral position aside, then to boot.
2, when the clutch toggle action should fast, otherwise the interlock brake does not work, increase the impact of the formation of the pawl of the automatic braking. At boot time should not be too hard, to be able to drive the input shaft pulley without slip can be.
3, must open when shifting the transmission clutch, otherwise it will damage the gear after shifting should check whether shifting firmly together, jump stop to prevent the occurrence of the phenomenon.
4, variable-speed process, if the gear difficult phenomenon occurs, can not be forced into the block, you can use hand-cranked device to help block specific practices such as: hand with a wrench toggle means to rotate at an angle to the block.
Maintenance and safe use
1. Engine use and maintenance, according to the machine instructions.
2. Lifting shall not exceed in line with use.
Lubricating oil surface must be kept within 1/4
3. gearbox, before using the machine outside the bearing should add oil.
4. Automatic burning cars and interlock brakes, should always pay attention to the wear of the friction plate, the automatic braking gear and back tighten loose gap of 0.5 mm, if the gap is greater than 1.5 mm, you must replace the friction plate, or likely to cause accidents.
5. Automatic brake load the gearbox, automatic normal lifting, due to the reverse gear is stuck, there is no "beep beep" sound when the back loose.
6. The bearing support frame is anchored on both sides of the reel anchor point, it can not be used as an anchor point to another location.
7. After the long-distance transport aircraft, before use, must be a detailed examination of the various components fastening screws loose, ministries parts is stagnant leak. Gearbox ZL4 aluminum body with screws on it should not be too tight and unnecessary disassembly, but can not use a hammer.
|Model Type||Engine Power||Gear||Pulling Speed(m/min)||Pulling Force(Ton)|
