Product Details:
|
| Capacity: | 0.8-5.4T | Sling Type: | Wire Rope |
|---|---|---|---|
| Speed: | Hand Operated | Application: | Cranes, Construction Hoist |
| Key Word: | Wire Rope Winch | Rope: | Steel Wire Rope |
| MOQ: | 5 Sets | Warranty: | 1 Year |
| High Light: | wire rope pulley block,cable hoist puller |
||

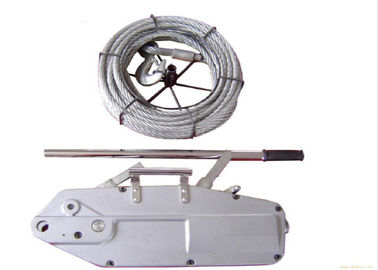

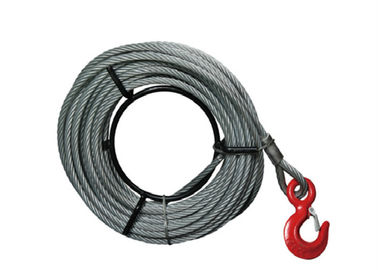

20 Meters Long Steel Wire Rope Hand Winch for cable pulling and lifting
Use and Characteristic

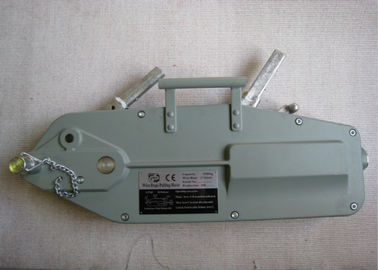

lever wire rope hoist also named Wire rope pullers,wire rope winch feature a lightweight, compact, high strength aluminum housing, smooth contour design with a large, flat bottom surface for increased stability in horizontal and vertical working positions.
1. Compact and lightweight design makes this product suitable for confined or limited space;
2. Easy to operate and anchor onto a variety of structures; making it suitable for most applications;
3. Operate in any position, horizontal, vertical or angled;
4. Ideal for 4x4 and off road recovery.
Mechanism
Donnot need accompany a wire-dum for rolling up wire rope, and it is therefore small in size, light in weigh. By moving the handle left and right, wire rope passes through. As if it were handled hand by means of two chucks equipped inside the body. This is very simply done and noexperience is necessary.
Features
1. Measures small and light.
2. Equipped with two safty devices, and this guarantees safe operations.
3. Wire rope is drawn out straight, by distant operations regardless of wire lengths.
4. Transmission at a sppeed of 3 meters per minute, and this is the fasteset speed among all hand-driven handling devices.
5. Wire rope can be used at any working temperature degrees.
6. Equipped with a saftey hook, preventing wire rope from coming off while operation.
7. Most rationally peaneed, designed and duarble.
Structure
Technical Data
Tirfor Winch.pdf
|
Model item |
VIT-800 |
VIT-1600 |
VIT-3200 |
VIT5400 |
|
Rated forward hand power(N) |
341 |
438 |
438 |
745 |
|
Rated capacity(KG) |
800 |
1600 |
3200 |
5400 |
|
Rated forward travel(MM) |
≥52 |
≥55 |
≥28 |
≥30 |
|
Rope diameter(MM) |
8.3 |
11 |
16 |
20 |
|
Wire rope safty factor load capacity(TIMES) |
5 |
5 |
5 |
5 |
|
Max travelling load(KG) |
1200 |
2400 |
4000 |
8000 |
|
Net weight(KG) |
6.4 |
12 |
28 |
56 |
|
Max outer size(MM) A |
426 |
545 |
660 |
930 |
|
B |
238 |
284 |
325 |
480 |
|
C |
64 |
97 |
116 |
152 |
|
L1(CM) |
|
80 |
80 |
68 |
|
L2(CM) |
80 |
120 |
120 |
112 |
|
Packing (L*W*H)(CM) |
43*6.4*24 |
54.5*9.7*29 |
66*12*35 |
110*110*73 |
Diagram
