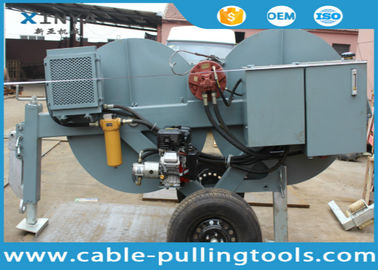

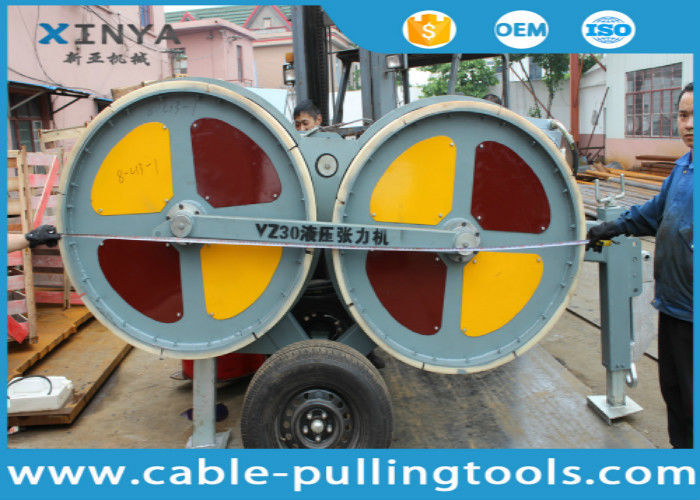

Hydraulic Tensioner for Stringing Cables and Conductors

Hydraulic Tensioner for Stringing Cables and Conductors
Hydraulic Tensioner for Stringing Cables and Conductors Hydraulic Tensioner for Stringing Cables and Conductors

Large Image :  Hydraulic Tensioner for Stringing Cables and Conductors

Product Details:
Place of Origin: Jiangsu,China
Brand Name: XINYA
Certification: ISO
Model Number: YQZ30
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD10000-13000/set
Packaging Details: 2 sets with 20GP
Delivery Time: 20 workdays after payment
Payment Terms: L/C, T/T,
Supply Ability: 50sets/month

Hydraulic Tensioner for Stringing Cables and Conductors

Description
Type: Hydraulic Puller Tensioner Weight: 1700kg
Oversize: 3560*1600 *2220 Mm Maximum Tension: 30KN
Max Continual Tension: 25KN Max Diameter Of Wire: 32mm
Application: Power Construction Usage: Cable Pulling,stringing
Name: YQZ30 30KN Hydraulic Tensioner For Stringing Cables And Conductors
High Light:

tension stringing equipment

,

cable puller tensioner

YQZ30 30KN Hydraulic Tensioner for Stringing Cables and Conductors





Brief Introduction

We are the leading & specialized manufacture of transmission line stringing equipments & tools in China. We could produce variety of hydraulic/electric tensioner; Hydraulic/electric puller; Hydraulic/electric stringing equipment of the pulling type; Hydraulic/electric stringing equipment of the tension type professionally.A transmission line tension stringing and aerial cableway erection job tension of the tension machine. The liner is fixed round groove of the main driven wheels arranged in parallel composition, and a diameter of the driven wheel driving wheel diameter 0.6 to 0.95, the master, the driven wheel two further fixed wheel and two or more groove substrate. When the wire is rotated by external traction rounds, only the large diameter drive wheel braking force that is applied. Selection round slot liner material of different coefficient of friction the wire by force, to avoid wire lantern, to protect the wire and release the tension wheel uniform wire. While the whole weight, smaller in size and lower cost.


Description
A. They are widely used for stringing the conductors & cables(opgw, ADSS, 500kv tractiong rope, lgj series, etc. ) in the overhead voltage stringing construction.
B. This machine has a set of tension early warning system, which can automatically adjust the speed according to the undue load or friction produced on the line and can keep the tension at setting value.
C. Tension or pulling force can be preset, spring applied brake, reliable overhead protection mechanism, easy to operate.
Remarks: All kinds of stringing equipment can be manufactured according to the customers's requirements.
If any interested, please feel free to contact with us for more information, and we will try our best to comply with your requirements.



Principle
Automatic hydraulic tensile machine manufacturer in Germany ZECK Features: Each friction wheel is driven by a hydraulic motor planetary gear transmission efficiency, frustrated not stop and then start producing sheet when the wire damage. Friction wheel with a special pad to protect the wires, replace the easy life assurance work up to 1200 hours. Patents have ground and pressure line features automatic rope fixed.



Feature

Bullwheel with wearproof MC nylon lining segments.infinitely variable tension control and constant tension conductor stringing .it adapt Italian reducer .spring applied hydraulic released brake acts automatically in case of hydraulic .failure to ensure safety



Main component

1. vEngine :Domestic water –cooled engine .

2. Main pump/motor ,Chinese famous branded pump and motor .

3. Reducer :RR(Italian )

4. Radiator: AKG

5. Hydraulic instrument :

6. It can choose import engine.



Technical Data

Model Type YQZ30
Overall Size(MM)

3560 ×1600 ×2220

Weight(KG) 1700
Max Tension(KN) 30
Max Continual Tension(KN) 25
Max Velocity(km/h) 5
Diameter of Tension wheel(mm) 1200
Solt No. of Tension wheel 5
Rated Pulling Force (KN) 30
Max Pulling Speed(km/h) 5 km/h
Max dia of wire Φ32mm
Engine Power 11KW/ 2200 r/min
Voltage 12V



Practical Application



Hydraulic Tensioner for Stringing Cables and Conductors 0
