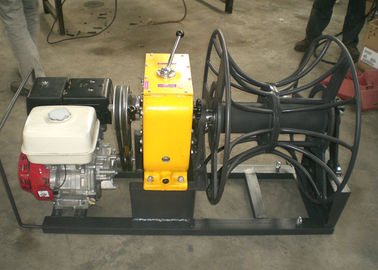

5 Ton Honda Petrol Engine Powered Cable Pulling Winch Machine

5 Ton Honda Petrol Engine Powered Cable Pulling Winch Machine
5 Ton Honda Petrol Engine Powered Cable Pulling Winch Machine 5 Ton Honda Petrol Engine Powered Cable Pulling Winch Machine

Large Image :  5 Ton Honda Petrol Engine Powered Cable Pulling Winch Machine

Product Details:
Place of Origin: Jiangsu,China
Brand Name: XINYA
Certification: ISO
Model Number: JJM5Q
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD1250-1500/set
Packaging Details: plywood case
Delivery Time: 7 workdays after payment
Payment Terms: L/C, T/T,
Supply Ability: 100sets/week

5 Ton Honda Petrol Engine Powered Cable Pulling Winch Machine

Description
Application: Power Construction Power Source: Honda Engine
Capacity: 50KN Weight(KG): 160
Size: 1200*850*750mm Key Word: Honda Wiinch
Usage: Cable Pulling
High Light:

wire rope pulley block

,

cable hoist puller



5 Ton Honda Petrol Engine Powered Cable Pulling Winch Machine





Application



1. Widely used in electricity, telecommunications line construction group established tower

2. Mobile actinomycetes,

3. Tight line

4.Also in place lifting and construction, docks and other traction weights, suitable for field sites without electricity, using handy.



Features



Speedy and Efficient;

Safe and Reliable;

Compact structure;

Small volume.



Transmission



Belt driven transmission



Brake System



Automatic clamp brake and clutch brake transmission interlock two brakes are braking action in positive and negative directions.



Technical Data

Model Type Power Gear Pulling Force(KN) Pulling Speed(m/min)
JJM-5Q Honda gasoline engine Slow 50 5
Quick 3 11
Reverse   4



DIAGRAM&PARTS LIST



5 Ton Honda Petrol Engine Powered Cable Pulling Winch Machine 0



5 Ton Honda Petrol Engine Powered Cable Pulling Winch Machine 1



Item

Description

Item

Description

Item

Description

Item

Description

1#

chassis

19#

Brake hoop

37#

Tank cover

55#

03-08bearing cap

2#

3#axle

20#

Brake disc

38#

Transparency cover

56#

05-05bearing bush

3#

Plug screw

21#

shield

39#

Nameplate

57#

4#shaft end ring

4#

03-05bearing cap(2)

22#

Big belt pulley

40#

03-02bearing cap

58#

03-06bearing cap

5#

0.2-07wheel gear

23#

Small belt pulley

41#

Shift hand wheel

59#

05-06bearing bush

6#

05-04bearing bush

24#

Clutch disc

42#

02-01dual gear

60#

underframe

7#

02-09wheel gear

25#

Linkage plate

43#

Shift fork

61#

Support plate

8#

Frictional disk

26#

Clutch handle

44#

Shifter shaft

62#

Clutch arm

9#

Ratchet wheel

27#

Clutch lining

45#

Shifter shaft spring

63#

capstan

10#

Pawl washer

28#

03-01bearing cap(2)

46#

1#axle

64#

05-03bearing bush

11#

07-08friction plate(6)

29#

0#washer(2)

47#

02-05wheel gear

65#

4#axle

12#

Pawl ring

30#

02-02wheel gear

48#

03-04bearing cap

66#

03-07bearing cap

13#

Brake shaft

31#

0#axle

49#

02-03wheel gear

67#

Support plate

14#

pawl

32#

Woodruff key

50#

2#axle

68#

Support plate bolt

15#

Pawl shaft

33#

02-04wheel gear

51#

02-10wheel gear

69#

Support plate

16#

Brake spring

34#

Belt feed lever seat

52#

02-08wheel gear

70#

05-02bearing bush

17#

Clamping handle

35#

Belt feed lever

53#

4#axle ring

71#

05-07bearing bush

18#

02-06wheel gear

36#

Shift fork handle

54#

Rubber seal

72#

Capstan catch
