Product Details:
|
Application: | Provide Power, Power Construction | Fuel: | Gasoline |
---|---|---|---|
Rated Flow: | 1.4L/min | Rated Pressure: | 80Mpa |
Gasoline Engine Min Speed: | 1500r/min | Size(mm): | 630*300*560 |
Engine: | Honda Engine | ||
Highlight: | hydraulic cable crimping tool,hydraulic crimp tool |

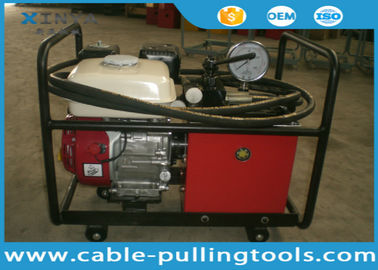

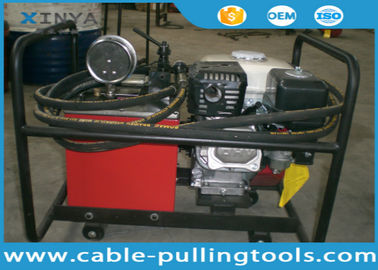

Honda Gasoline Engine High Pressure Hydraulic Pump / Hydraulic Oil Pump For Power Supply
Application

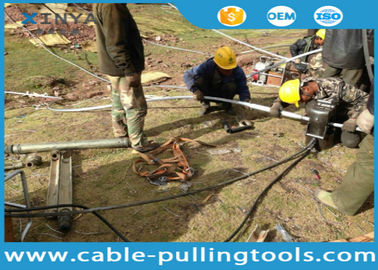

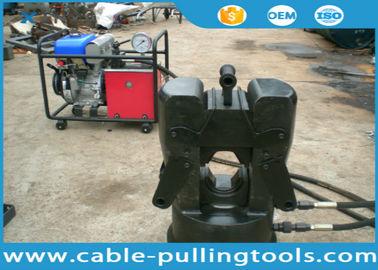

Application of Honda Gasoline Engine Hydraulic Oil Pump : to provide power for the cutting tool, the hydraulic compressor, punching machine
and other construction machinery, which is operated in the wild field in electric power, railway, rescue, construction and other industries.
Features
1 Easy to operate and high safty
2 Precise Machining Technique
3 Long Life of the Machine
4 Delicate and Beautiful Appearance Design
5 Broader Applicable Scope
6 Good quality and less malfunction
Information
1 Electromagnetic valve control to withdraw piston in any position.
2 High and low speed two stage for quick oil output.
3 Pressure safety valve over pressure unit could avoid over pressure damage.
4 High pressure is for driving piston and low pressure is for piston reset.
5 Oil pipe fitted with quick coupling could be ordered at any length.
Technical Data for Honda Gasoline Engine Hydraulic Oil Pump
Product NO. | Type NO. | Rated Pressure(Mpa) | Rated Flow(L/min) | Max output pressure(Mpa) | Tank Volume(L) |
80043 | JYB-80 | 80 | 1.4 | 100 | 8 |
