Hydraulic Bus bar Hole Punching Tool For Metal Hole Punching CH-60

Hydraulic Bus bar Hole Punching Tool For Metal Hole Punching CH-60
Hydraulic Bus bar Hole Punching Tool For Metal Hole Punching CH-60 Hydraulic Bus bar Hole Punching Tool For Metal Hole Punching CH-60

Large Image :  Hydraulic Bus bar Hole Punching Tool For Metal Hole Punching CH-60

Product Details:
Place of Origin: Jiangsu ,China
Brand Name: XINYA
Certification: ISO
Model Number: CH-60
Payment & Shipping Terms:
Minimum Order Quantity: 2 sets
Price: USD90-150/set
Packaging Details: wood case
Delivery Time: 7 days after payment
Payment Terms: L/C, T/T,
Supply Ability: 200 sets/month

Hydraulic Bus bar Hole Punching Tool For Metal Hole Punching CH-60

Description
Type: Hydraulic Hole Puncher Application: Hole Punch
Weight:: 13.5 Bore Diameter:: 10.5 - 20.5
Color: Can Be Ordered Output: 31T
High Light:

busbar bending machine

,

busbar punching machine

CH-60 Hydraulic Bus bar Hole Punching Tool For Metal Hole Punching





Tools Introduction

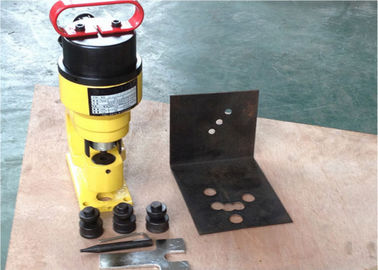

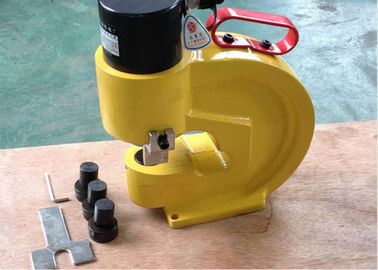

Hydraulic Punching Tools CH-60 is a remote control tool, works with an external hydraulic pump (Hand Foot or Electric pump). It is designed to punch round holes on Cu/Al Busbar. With 4 pairs standard punching dies (10.5 / 13.8 / 17 / 20.5mm), punching hole size is between diameter 10.5mm and diameter 20.5mm. Busbar thickness should below or equivalent to 8mm. With hydraulic power, 4 pairs sharp punching dies, easy fast and clean punching can be achieved.



Features

Operation speed of  CH-60 Hydraulic Hole Puncher is fast than electric drill. It only need a few seconds for punching and there is no burr after punching.

With pressing mechanism design, punching precision is good.

With the hydraulic pump as power, it can used in no power site.

1. Remote Control Style: Works with an external hydraulic pump. With the help of hydraulic power, punching become easy and fast. Foot Hand and Electric Hydraulic pumps are all available in our products range

2. 4 Pairs Standard Punching Dies: For precise punching, select proper dies accoding to application

3. Dies Size: 10.5mm  13.8mm  17mm  20.5mm

4. Punching Dies Customization is Available if samples and Drawings can be provided

5. Steel Case Package: Protect Tools well



Technical Data

Product No. Type NO. Output(T) Bore Diameter Throat Depth(mm) Slab Thickness(mm)
80107A CH-60 31 10.5-20.5 95

Steel8

Copper10

Aluminum10
