Product Details:
|
| Max Pressure(kg/cm2): | 700 | Usage: | Power Supply |
|---|---|---|---|
| Weight(KG): | 9 | Capacity Of Oil (cc): | 900 |
| Oil Flow Per Minute(cc): | 2.3 | Selling Point: | Light Weight |
| Model: | CP-700 | Product Name: | Light Weight Hydraulic Hand Operated Mini Pump With High Pressure CP-700 |
| Type: | Hydraulic Hand Operated Mini Pump | ||
| High Light: | hydraulic cable crimping tool,hydraulic wire cutter |
||
Light Weight Hydraulic Hand Operated Mini Pump With High Pressure CP-700
Application
It can provide power for the cutting tool, the hydraulic compressor,punching machine and other construction machinery,which is operated in the wild field in electric power, railway, rescue, construction and other industries.
Characteristic
1. High pressure, hydraulic lightweight hand pumps feature a compact design and are available in single and two speed pump types
2. Durable glass-filled nylon reservoir and nylon encapsulated aluminium pump base for maximum corrosion resistance
3. Two-speed operation reduces handle strokes by as much as 78% over single speed pumps
4. Lower handle effort to minimize operator fatigue
5. Handle lock and lightweight construction for easy carrying
6. Large oil capacities to power a wide range of cylinders or tools
7. Non-conductive fiberglass handle for operator safety
8. Internal pressure relief valve for overload protection.
Features
1 High Pressure
2 Iron box packing
3 Use No.15 Antiwear hydraulic oil
4 Ultra Small
5 Easy Operation
6 Convenient to Carry
7 Wide Range of Application
Quality Control Of Hand pump
To ensure that customers use our Jack with no worries, hereby we warrant:
1. We strictly select good material to ensure the reliable quality.
2. Not only in the selection of materials, but also in every production procedures, we strictly act according to the ISO9001 standard, and control by full-scale inspection.
3. The Technical and specialized support from us will be available.
4. The upgraded products information will be timely supplied.
Technical Data
| Product No. | Model Type | Max Pressure(kg/cm2) | Oil Flow Per min(cc) | Oil Capacity | Dimension(mm) |
Weight(kg) |
||
| Low pressure | High pressure | Low pressure | High pressure | |||||
| 80046 | CP-630 | 20 | 700 | 13 | 2.3 | 1100 | 720*200*210 | 10 |
| 80047 | CP-700 | 20 | 700 | 13 | 2.3 | 900 | 510*140*250 | 9 |
| 80048 | CP-700B | 20 | 700 | 13 | 2.3 | 1800 | 510*150*200 | 9 |

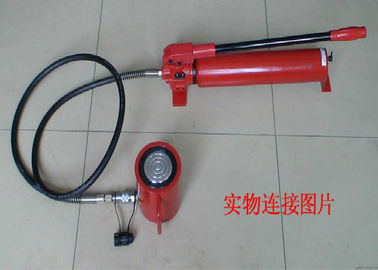

Practical Application
