| Brand Name: | XINYA |
| Model Number: | SHND |
| MOQ: | 1Piece |
| Price: | get latest price |
| Delivery Time: | 10-15 workdays after payment |
| Payment Terms: | L/C, T/T, |

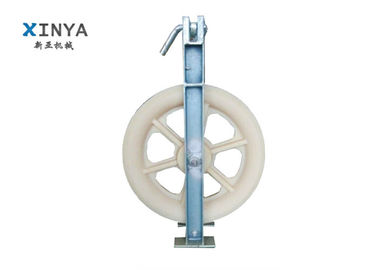

Transmission Line Stringing Tools 830mm Diameter Conductor Stringing Pulley Block With Nylon wheel
Application & Features
1. It is used to release the wire in the overhead transmission line.It can be used for single conductor,double split wire,four split wire,six split and so on. If the pulley has multiple wheel, the intermediate wheel can use cast steel wheel ,it also can use MC Nylon Wheel.
Large Diameter Stringing Pulley Block 830mm is used to release the wire in the overhead transmission line.
2. And it can be used for single conductor, double split wire, four split wire, six split wire and so on.
3. Used for buiding on stilts to stretch to put conducting line in the power transmission wire ways is more available than an single split conducting line,double split conducting line,four split conducting line,six split conducting line etc.
Specifications
Stringing pulley blocks;pulleys
1) Outside Dia830mm;
2) Sheave: MC Nylon;
3) Frame: Galvanized steel;
Stringing pulley blocks;pulleys
1) Outside Dia:830mm;
2) Sheave:MC Nylon;
3) Frame:Galvanized steel;

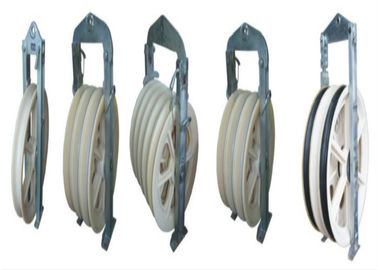

4) Sheave number:1/3/5/7
Features
1) It could use for releasing large diameter conductors,like ACSR 350--500KV voltage line in transmission line.
2) very smoothly
Technical Data
| Product No. | Model Type | Rated Load(KN) | Applicable Conductor ACSR(mm2) | Weight(kg) | Sheave No. | Outside Dia*Groove Dia*Sheave Width(mm) |
| 80324 | SHDN-830*110 | 30 | ≤ LGJ630 | 25 | 1 | Φ830*Φ710*110 |
| 80325 | SHSQN-830*110 | 60 | 118 | 3 | ||
| 80326 | SHWQN-830*110 | 120 | 180 | 5 | ||
| 80327 | SHQQN-830*110 | 150 | 245 | 7 |
