Product Details:
|
| Rated Output (kg/psi): | 700 | Output Oil Per Minute (cc): | Low Pressure:13,High Pressure:2.3 |
|---|---|---|---|
| Oil Capacity (cc): | 350 | Weight (kg): | 11 |
| Volume (cm): | 68x15x18 | PRemarks: | High Pressure |
| Highlight: | construction power tools,double ended ring spanner |
||

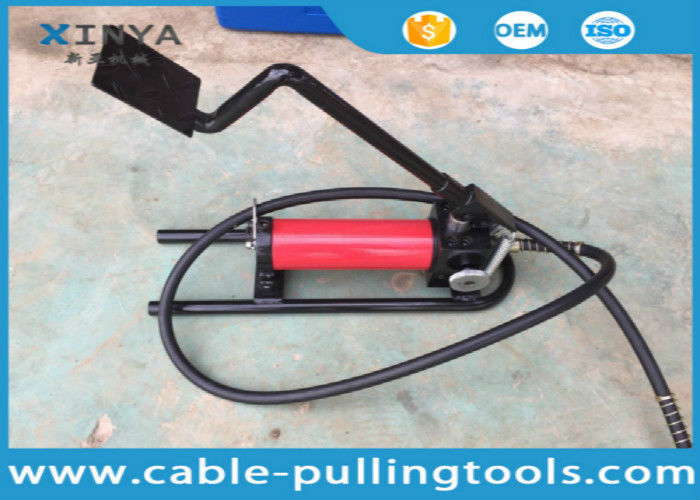

CP-800A High Pressure Hydraulic Oil Foot Pump Pedal Hydraulic Pump 700Bar
FUNCTION:
1. Pump is designed in two stages of high and low speed for quick oil output.Even if lack of electric power,operation
could be carried conveniently.The same as the electric pump in any working pressure and function.
2. Pedal operation.The operator could work while hands griping tools of object.
3. Pressure could be stopped in middle.Inner designed high pressure safety unit protect hydraulic valve.
4. Wide hydraulic pump base for fixing frame could inprove stability of operation at work.
5. Oil pipe fitted with quick coupling could be ordered in any length.It could be fitted with pressure gauge(to be ordered).
6. Oil pipe coupling fitted with NPT3/8"thread.
Data Sheet
Model | CP-800A |
Rated output (kg/psi) | 700 |
Output oil per minute (cc) | Low pressure:13 |
High pressure:2.3 | |
Oil capacity (cc) | 350 |
Weight (kg) | 11 |
Volume (cm) | 68x15x18 |
Remarks | Foot-opperated type |
Model | Working pressure (Mpa) | Flow rete (L/min) | Oil capacity (cc) | Volume (cm) | Weight (kg) | ||
Low pressure stage | High pressure stage | Low pressure stage | High pressure stage | ||||
CP-800A | 2 | 70 | 13 | 2.3 | 350 | 68x15x18 | 11 |
CP-800B | 2 | 70 | 13 | 2.3 | 350 | 62x22x28 | 11 |
Model | Pneumatic output (bar/psi) | Air pressure (bar/psi) | Oil capacity (cm³) | Volume (cm) | Weight (kg) |
CP-80AQ | 700/10000 | 8/120 | 690 | 37x18x19 | 8.9 |
CP-80BQ | 700/10000 | 8/120 | 1700 | 28x15x20 | 8.1 |
