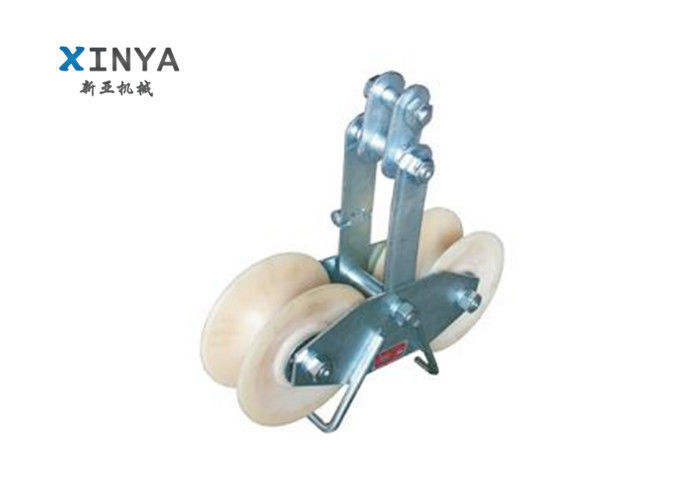

Double Sheave Stringing Pulley Blocks for String Cable During Power Tranmission Line

Double Sheave Stringing Pulley Blocks for String Cable During Power Tranmission Line
Double Sheave Stringing Pulley Blocks for String Cable During Power Tranmission Line Double Sheave Stringing Pulley Blocks for String Cable During Power Tranmission Line

Large Image :  Double Sheave Stringing Pulley Blocks for String Cable During Power Tranmission Line

Product Details:
Place of Origin: Jiangsu , China
Brand Name: XINYA
Certification: ISO
Model Number: SSH-1
Payment & Shipping Terms:
Minimum Order Quantity: 5 Pieces
Price: USD25-40/piece
Packaging Details: carton
Delivery Time: 7 workdays after payment
Payment Terms: L/C, T/T,
Supply Ability: 1000 pieces/month

Double Sheave Stringing Pulley Blocks for String Cable During Power Tranmission Line

Description
Rated Load: 25 KN Pulley Material: MC Nylon Or Aluminum
Weight: 8-9.5kg Application: Stringing
Type: Pulley Blocks Usage: Power Construction
High Light:

wire rope pulley block

,

cable hoist puller

Double Sheave Stringing Pulley Blocks for String Cable During Power Tranmission Line



Application and Features

With the carts before and after, increase the contact area of the wire   and wheel groove which can be through a variety of connectors.

According to material of pulley, it can be divided into aluminum alloy wheel, nylon wheel.



Technical Data

Main Components

Item No. Model No. Applicable Conductor Section Rated Load
(KN)
Weight
(kg)
Remark
1714 SHR-2.5 ACSR300~500 25 11 Aluminum Wheel
1715 SHRN-2.5 ACSR300~500 25 9.5 Nylon Wheel

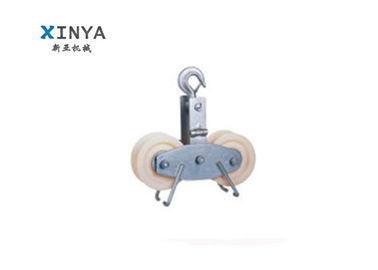

Cable sheave with hook, cable block and tackle with hook
Uses: Apply to leading and paying off large section conductor. Splicing sleeve can pass through from the groove.
Specification: Hanger includes hook type, plate type and ring type. This is need indicated when customer place order. Special size can be customized.

Description of Cable pulley :
a. We manufacture a lot of models for different uses in the overhead transmission line construction.
b. They have are used to support conductors,OPGW,ADSS, communicatio lines.
c. The sheave of the pulley blocks are made from higth strength nylon,or aluminum materials ,and the frame of blocks are made of galvanized steel.The lateral ones are mounted on ball bearings.
Remarks:All kinds of pulley blocks can be manufactured according to the customers's requirements.
If any interested,please feel free to contact with us for more information,and we will try our best to comply with your requirements.

Packing&Delivery Time
1. Bulk Pack With Wooden Board Carton
2. Delivery time: Within 30 Days After Receiving The Payment
