Product Details:
|
| Working Stroke: | 30mm | Crimp Form: | Hexagon |
|---|---|---|---|
| Weight: | 8.0kg | Output: | 130KN |
| Application: | Crimping | Type: | Hydraulic Crimping Tool |
| High Light: | hydraulic cable crimping tool,hydraulic wire cutter |
||
Characteristics
1. Compression mould can be replaced, quick and safe operation;
2. Compression configuration: 50,70,95,120,150,185,240,300,400mm2
Press tools is suitable for DIN.AWG.JIS.
There is a safe protective equipment of "Kacha" voice when it reaches to high or low voltage.
Only one person can work.
Pump is connected to the tools, it can turn 180 degree when pressed on the head.
Introduction

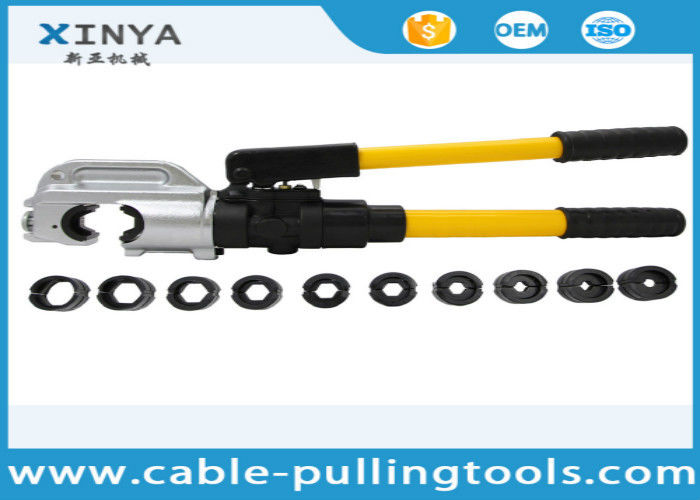

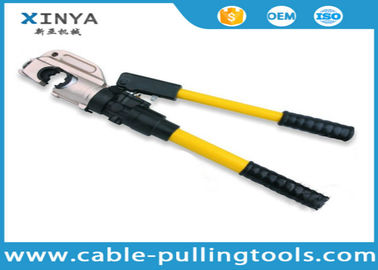

It is a hand-operated, self-contained tool, it is designed to crimp Cu and Al connectors onto cable.
It's crimping range is from 50 to 400mm
With the help of hydraulic power and double speed unit, crimping become easy and fast.
Fiberglass handles and safety valve equipped
avoid electric shock and protect hydraulic system from overpressure.
Technical Data
| Product No. | Model Type | Output (KN) | Crimping Range(mm2) | Working Stroke(mm) | Packing Term | Oil Capacity (cc) | Weight(kg) |
| 80079 | CYQ-410 | 130 | 400 | 30 | plastic box | 145 | 8.0 |
| 80080 | CYQ-430 | 130 | 400 | 30 | plastic box | 145 | 7.9 |
| 80081 | CYQ-510B | 130 | 400 | 30 | plastic box | 200 | 9.3 |
Questions & Answers
1. How about the payment terms?
Answer: We accept 30% T/T in advance, 70% balance before the delivery. Other terms like O/A and L/C also available, we can discuss in details.
2. How do you guarantee your quality?
Answer: Firstly, quality test in every process. We produce most components by ourselves, started from cutting raw material, machining roughly in the first step, casting, forging, punching, heat treatment, finish machining, painting, assembling and finally packing, we will spot check for each step.
Secondly, we collect all comments on our products from customers in time, then improve quality all the time.
3. Is the whole working procedure finished by your workshop?
Answer: 90% procedures are finished in our workshop, so we can control strictly the quality of components and finished products. Surface color treatment is done outside but we check each batch incoming materials.
4. How about your delivery time and stock status?
Answer: We have stock for our best-selling products and most models, so we can shorten delivery time to 3 days and even 1 day after order confirmation.
5. How long is your warranty period?
Answer: Standard warranty period is 12 months.
6. Can you provide OEM service and have our own logo on products?
Answer: Yes, we work on OEM orders. That's ok to have your own logo on the products. Please contact us with details before placing order.
7. How about the packing and shipping?
Answer: Normally, we have plastic carrying case, carton and foam for packaging. If you have any other special requirements, please feel free to let us know.
