Created with Pixso. 60 KN Output Manual Hydraulic Cable Lug Crimping Tool with Safety Valve

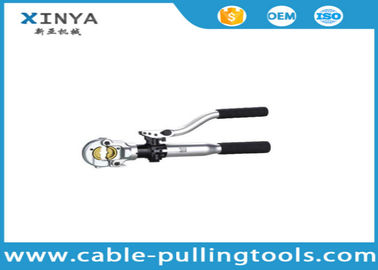

60 KN Output Manual Hydraulic Cable Lug Crimping Tool with Safety Valve

Brand Name: XINYA
Model Number: HT-300
MOQ: 1sets
Price: get latest price
Delivery Time: 7-10 workdays after payment
Payment Terms: L/C, T/T,
Detail Information
Place of Origin:
Jiangsu,China
Certification:
ISO
Output:
60kn
Crimp Form:
Hexagon
Range Of Crimping:
16-300m2
Weight:
4.6kg
Selling Point:
360 Degree Rotation
Type:
Hydraulic Crimping Plier
Packaging Details:
carton
Supply Ability:
100sets/week
Highlight:

hydraulic cable crimping tool

,

hydraulic wire cutter

Product Description

60 KN Output Manual Hydraulic Cable Lug Crimping Tool with Safety Valve



Characteristic

1 Compression mould can be replaced, quick and safe operation;

2 The head can do a 360 degree rotation.

3 Compression configuration: 16, 25, 35,50,70,95,120,150,185,240,300mm2



Product Features

1 The tool has a double speed action:a fast advancing speed for rapid approach of the blades to the        connector and a slower more powerful speed for cutting

2 For ease of operation and comfort the operator,the tool head can be fully rotated through 180° degrees

3 The built-in safety valve will by-pass the oil supply when the maximum pressure is reached and the    pressure release system can be easily operated at any stage of compression

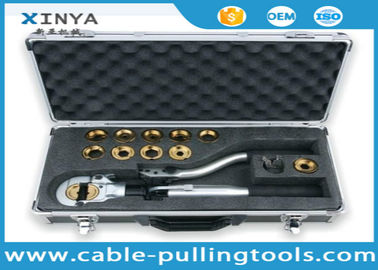

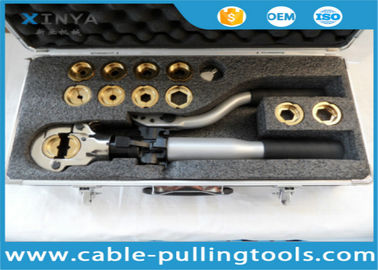

4 With interchangeable crimping dies



Specifications

1. Light weight,easy to carry and simple to operate.The wedge with automatic device,durable use.

2. Raplaceable bypass cartridge.

3. External pressure adjustment swivel head.

4. Fiberglass handles.

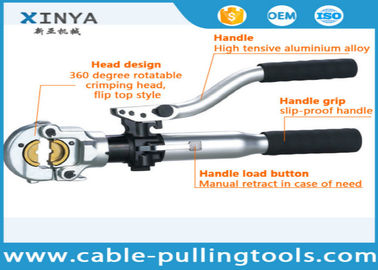

5. For interchangeable die.Flip top style closed crimping head,rotates 360.Automatic retraction when crimp is complete Manuel retraction in case of need.



Detailed Product Description and function

1.manual hand pump operated, for copper pipe, steel tube, plastic water pipe

-It is suit for common water pipe, wire pipe, carbon steel pipe, conduit tube, bending the angle 90

-The upper plate of the new design is cut by one time, it won’t be broken.

 This machine could bend pipes toward any direction you want;the largest bending angle is 90°
2.Suitable for use in bending brass pipes,steel pipes,hydraulic pipes,coated and uncoated pipes.

3.We can make moulds in other specifications according to customers requirements



Technical Data

Product No.

Model Type

Output(KN)

Crimping Range(mm2)

Length(mm)

Packing term

Crimping Form

Weight(kg)

80069

HT-300

60

16-300

460

Iron box

Six Angle

4.6







60 KN Output Manual Hydraulic Cable Lug Crimping Tool with Safety Valve 0
