80-120 KN New Hydraulic Wire Cutter for Cutting in Light Weight

80-120 KN New Hydraulic Wire Cutter for Cutting in Light Weight
80-120 KN New Hydraulic Wire Cutter for Cutting in Light Weight 80-120 KN New Hydraulic Wire Cutter for Cutting in Light Weight

Large Image :  80-120 KN New Hydraulic Wire Cutter for Cutting in Light Weight

Product Details:
Place of Origin: Jiangsu,China
Brand Name: XINYA
Certification: ISO
Model Number: CPC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: USD150-250/set
Packaging Details: standard export wooden case
Delivery Time: 7 workdays after payment
Payment Terms: L/C, T/T,
Supply Ability: 500 Set/Sets per Month

80-120 KN New Hydraulic Wire Cutter for Cutting in Light Weight

Description
Condition: Cutting Cutting Force(KN):: 80-120
Weight(KG):: 3.6-7 Condition:: New
Brand Name: XINYA Certification: ISO
Highlight:

cable drum trailer

,

cable tower machine

80-120 KN New Hydraulic Wire Cutter for Cutting in Light Weight



Use and Characteristic

1 The tool features a double apeed action:a fast advancing speed for rapid approach of the blades to the connector and a slower more powerful speed for cutting.

2 For ease of operation and comfort the operator the tool head can be fully rotated through 360 degrees.

The built in safety valve will bypass the oil supply when the maximum pressure is reached,and the pressure release system can easily be operated at any stage of compression.

3  With interchangeable dies.

4 Steel cutting heads which can be mounted in the most convenient position for the user working in difficult locations such as shafts or towers.

5 Easy to replace blades.

6 Spring return in single acting model.

Carrying box for protection and ease of transport.

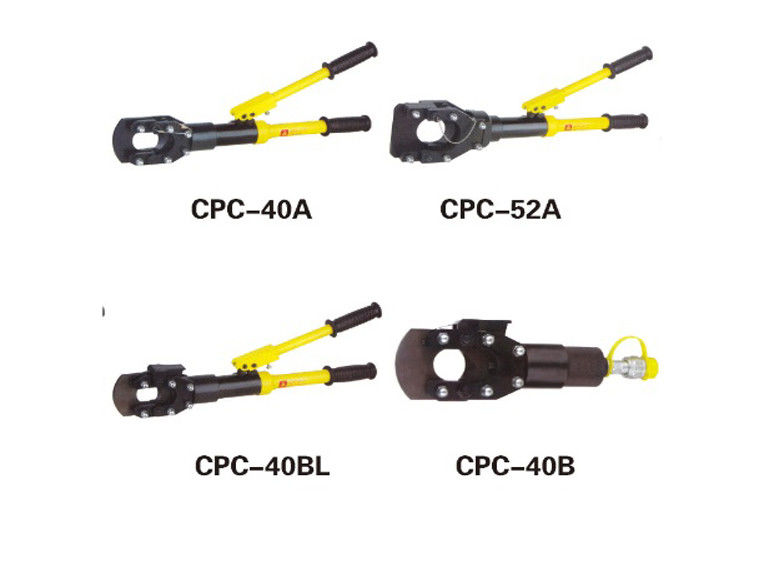

Technical Data for  Hydraulic Wire Cutter

Product No. Model Type Cutting Force(KN) Length(mm) Cutting Rang Weight(KG)
80257

CPC-40A

80 570  telephone cableΦ40mm;  steel aluminum core armored cableΦ32mm   5.0
80258 CPC-52A 120 615  telephone cableΦ50mm;  steel aluminum core armored cableΦ45mm 7.0
80259 CPC-40BL 120 480 ACSR Φ40mm;steel wire Φ28mm 5.0
80260 CPC-40B 100 320  telephone cableΦ40mm;  steel aluminum core armored cableΦ28mm 3.6




80-120 KN New Hydraulic Wire Cutter for Cutting in Light Weight 0
