Product Details:
|
| Maximum Tension(kN): | 40 | Continuous Tension(kN): | 35 |
|---|---|---|---|
| Maximum Speed (km/h): | 5 | Number Of Grooves: | 5 |
| Maximum Speedback (km/h): | 2 | Type: | Cable Tensioner |
| Product: | 40KN Hydraulic Cable Tension Stringing Equipment | Warranty: | 1 Year |
| High Light: | hydraulic cable tensioner,cable puller tensioner |
||

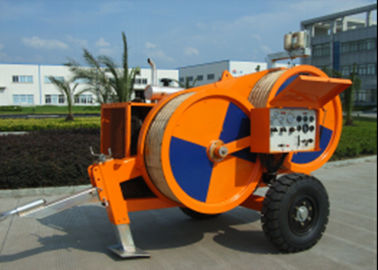

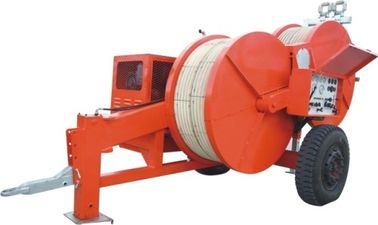

40KN Hydraulic Cable Tension Stringing Equipment With MC Nylon Bullwheel
Product Introduction
The overhead transmission line tension stringing equipments are widely used in overhead transmission Line Conductor or OPGW tension stringing project. We are the only one to supply whole set of stringing equipment and tools for transmission line construction in China.
We could supply whole set of stringing equipment and tools for transmission line up to 1000KV construction.
Description
a. They are widely used for stringing the conductors & cables(OPGW,ADSS,500kv tractiong rope,LGJ series,etc.).
b. This machine has a set of tension early warning system,which can automatically adjust the speed according to the undue load or friction produced on the line and can keep the tension at setting value.
c. Tension or pulling force can be preset,spring applied brake,reliable overhead protection mechanism,easy to operate.
Application
30KN Hydraulic wire tension device adequate to tension releasing various conducts and earthwires .and also useful for tension releasing OPGW optic cable compounded earthwire and ADSS self–stand optic cable etc .
Feature
Bullwheel with wearproof MC nylon lining segments.
infinitely variable tension control and constant tension conductor stringing .
spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety
attached hydraulic power output interface to connect hydraulic reel stand .
Main component
Engine : Cummines water-cooled engine .
Main pump/motor :Rexroth (BOSCH)
Reducer :RR(Italian )
Hydraulic valve:Rexroth (BOSCH)
radiator:AKG
hydraulic instrument:
Technical Data
|
Maximum Tension(kN) |
40 |
|
Continuous Tension(kN) |
35 |
|
Maximum speed (km/h) |
5 |
|
Bullwheel bottom of groove diameter(mm) |
Φ1200 |
|
Number of grooves |
5 |
|
Maximum pullback (kN) |
40 |
|
Maximum speedback (km/h) |
2 |
|
Maximum suitable conductor diameter (mm) |
Φ32 |
|
Engine power /speed (kW/rpm) |
37/2800 |
|
Dimensions (mm) |
3400×1800×2400 |
|
Weight(kg) |
2800 |
