Product Details:
|
Maximum Tension(kN): | 2×35 Or 1×70 | Continuous Tension(kN): | 2×30 Or 1×60 |
---|---|---|---|
Maximum Speed (km/h): | 5 | Engine Power /speed (kW/rpm): | 38/2500 |
Dimensions (mm: | 4100 × 2100×2600 | Weight(kg): | 4000 |
Highlight: | tension stringing equipment,hydraulic cable tensioner |

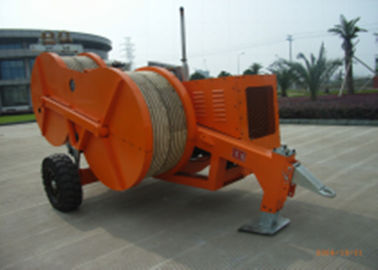

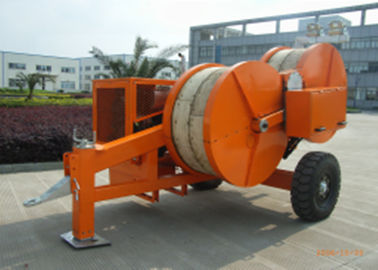

70KN Cable Tensioners Hydraulic SA-YZ2×35 To Stringing Two Conductor At One Time
Application
2*35 KN Hydraulic Wire Tensioner is used to string various conducts and earthwire
Feature
1. Bullwheel with wearproof MC nylon lining segments.
2. Infinitely variable tension control and constant tension conductor stringing .
3. Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety .
4. attached two sets of hydraulic power input interface to connect the hydraulic conductor reel stand .
Main component
1. Engine :Chinese famous brand water–cooled engine .
2. main pump and main motor : Rexroth (BOSCH )
3. Reducer : RR(Italian) or Rexroth
4. hydraulic valve : Rexroth (BOSCH )
5. radiator :AKG
6. hydraulic instrument :
7. it can choose :Deutz air–cooled engine .
Technical Data
Maximum Tension(kN) |
2×35 or 1×70 |
Continuous Tension(kN) |
2×30 or 1×60 |
Maximum speed (km/h) |
5 |
Bullwheel bottom of groove diameter(mm) |
Φ1200 |
Number of grooves |
2×5 |
Maximum pullback (kN) |
2×30 or 1×60 |
Maximum speedback (km/h) |
2×1.2 |
Maximum suitable conductor diameter (mm) |
Φ32 |
Engine power /speed (kW/rpm) |
38/2500 |
Dimensions (mm) |
4100 × 2100×2600 |
Weight(kg) |
4000 |
Founded in 1983, CHANGSHU city power machinery factory.
Since 1983 to 2008,XINYA is focusing on hoisting machinery,mining machinery and forklift parts.
From 2008,XINYA enlarge the manufacturing ability,focusing on cable pulling tools.
In 2013 the company passed ISO9001 certification, and obtain the AAA certificate.
In 2015 attains the high-tech enterprise of Jiangsu province, also achieved brand-name products in Jiangsu province
To now,XINYA has already sell cabe pulling tools to Pakistan, India, Mexico, Turkey, Peru,Brazil, Vietnam,Thailand,Saudi Arabia,Malaysia,Kenya and etc.
We have cooperated with ESCOM MALAWI,ZESCO,Transelectria and so on.
Industry-standard drafting
Relying on strong R & D capabilities, participated in the drafting contains the highest industry standards, including six national standards, the industry is involved in the drafting of standard equipment at most companies.
Owns a number of patents
