Product Details:
|
| Dimension(mm): | 2300*1250*1620 | Weight(KG): | 450 |
|---|---|---|---|
| Max Tension(KN): | 7.5 | Rated Tension(KN): | 5 |
| Maximum Speed(m/min): | 40 | Application: | Overhead Line Transmission |
| High Light: | hydraulic cable tensioner,cable puller tensioner |
||

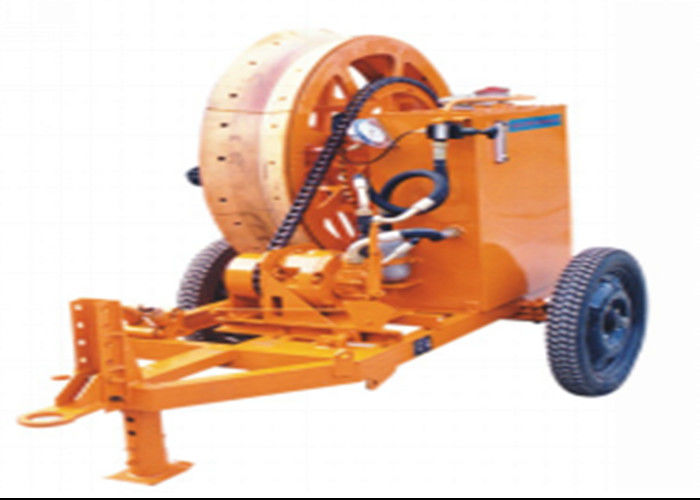

Cable Tensioners Hydraulic 0.75 Ton for Overhead Line Transmission
Application
Cable Laying Equipment 0.75 Ton Passive Hydraulic Cable Tensioner is applicable to release wire, ground wire, cable in transmission line project.
Characteristic
1) high efficiency ;
2) safe and reliable;
3) widely used;
4) high quality
5) convenient to carry
Quality Control
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.
Our Values
1, Take First-Class Quality as Target and First-class Service.
2, As Responsibility, To Succeed By Scientific Management.
3, Customer in Heart, Quality in Hand, Technology in the Lead.
Technical Data
| Model Type | YL-75 |
| Overall Size(mm) | 2300*1250*1620 |
| Weight(kg) | 450 |
| Max Tension(KN) | 7.5 |
| Rated Tension(KN) | 5 |
| Max Velocity(m/min) | 40 |
| Diameter of Tension wheel(mm) | Φ1100 |
| Applicable Conductor Wire | ≤ LJ-240 |
| ≤ LJ-185/10 | |
| Suitable Hydraulic Oil Type | No.46 Antiwear Hydraulic Oil |
|
Max Oil Temperature(°C) |
70 |
| Rated Working Pressure(MPa) | 25 |
