| Brand Name: | XINYA |
| Model Number: | JKT |
| MOQ: | 10 Pair/Pairs |
| Price: | get latest price |
| Delivery Time: | 7 workdays after payment |
| Payment Terms: | L/C, T/T, |
Application

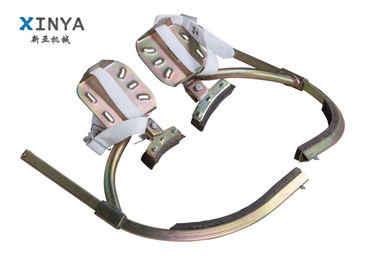

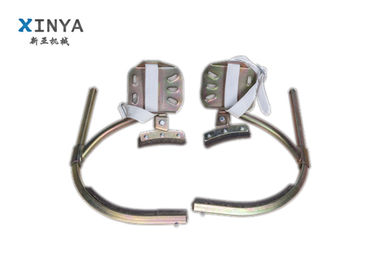

It is used to climb the concrete pole of power line, mail and telephone line.
Features
1 Special heat treatment
2 Weight:3.0-3.5kg
4 Easy operating
5 High quality and best price
Production assurance description
1. Our climbers are produced according to local standard design and organizations , we will responsible for all quality problem for half year if the products are under
normal use.
2. The following conditions are not in the scope of quality assurance:Deformation caused by stressing
application not according to the stated testing load.
Corrosion caused by being affected with damp.Lack of nameplate, date of manufacture or test lot No.
3. storage,The climbers should be stored in the well ventilated place and you should keep it
from corrosion.
Technical Data
pole climber.pdf
Model | JK-T-300 | JK-T-350 | JK-T-400 | JK-T-450 |
The biggest opening distance(mm) | 300 | 350 | 400 | 450 |
Weight (kg) | 3.0-3.5 | 3.0-3.5 | 3.0-3.5 | 3.0-3.5 |
Outer diameter of cement rod(mm) | Φ190-Φ300 | Φ250-Φ350 | Φ250-Φ400 | Φ250-Φ400 |
Rated load(KN) | 1.00 | 1.00 | 1.00 | 1.00 |
Testing load(KN) | 1.65 | 1.65 | 1.65 | 1.65 |
Overload(KN) | 2.25 | 2.25 | 2.25 | 2.25 |
Testing time(min) | 5 | 5 | 5 | 5 |
Remarks | For 8m | | For 15m | For 18m cement |
Application
