Product Details:
|
| Weight: | 1.2 - 1.5 Kg | Material: | Steel Wire Rope For Insulated Conductor Net Connector |
|---|---|---|---|
| Rated Load: | 20 - 30 Kn | Application: | Power, Tightening |
| Item: | Insulated Conductor Net Connector | ||
| High Light: | block and tackle hoist,wire rope pulley block |
||

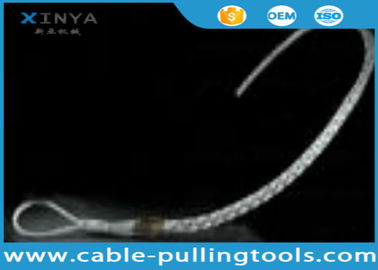

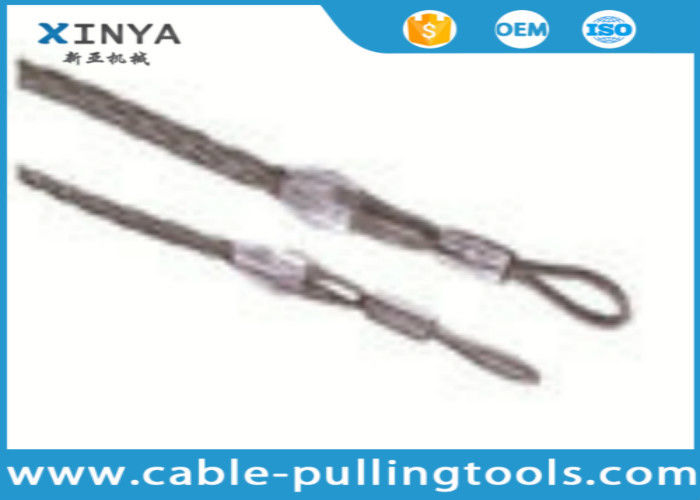

High efficency Insulated Conductor Net Connector for Tightening
Application
Insulated Conductor Net Connector is used for the traction of insulated wire.
It can not only go through all kinds of pulley,but also can protect the outer insulation from damaging .
Use and Characteristics:
It is knitted by joint capital alloy steel, the flexibility is good, easy to extend and contract, can through each kind of pulley and convenient to carry.
Quality Control
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.
Our Values
1, Take First-Class Quality as Target and First-class Service.
2, As Responsibility, To Succeed By Scientific Management.
3, Customer in Heart, Quality in Hand, Technology in the Lead.
Technical Data for Insulated Conductor Net Connector
| Product NO. | Type NO. | Rated Load(KN) | Range(mm2) | Weight(kg) | |
| 80189 | JWL-1 | 20 |
25-70 |
1.2 | |
| 80190 | JWL-2 | 25 | 95-150 | 1.25 | |
| 80191 | JWL-3 | 50 | 185-240 | 1.5 |
|
