Product Details:
|
| Rated Loading Capacity: | 5 Ton | Capacity: | 5 Ton |
|---|---|---|---|
| Application: | Cranes, Power Construction; Hositing;pulling | Material: | Steel |
| Max Pulling Speed: | 24m/min | Max Pullig Force: | 50KN |
| Highlight: | cable drum trailer,cable tower machine |
||

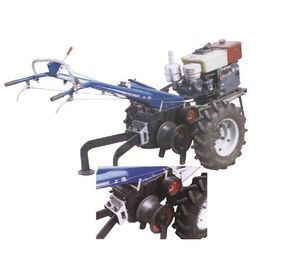

5 Ton hand tractor wire rope winch for power construction diesel power
Application
5 Ton Hand Tractor Wire Rope Winch is used for stringing wire in electrical power line construction,crane lifting.
Features
Four gear,forward gear and reverse gear
speedy and convenient
high quality
Technical Data
| Model Type | Overall Size(mm) | Weight(kg) | Power | Gear | Pulling Force(KN) | Pulling Speed(m/min) |
| JJM-5SQ | 2670*1040*1300 | 600 | Dongfeng Type 12 walking tractor | Slow | 50 | 5 |
| Mid | 27 | 8 | ||||
| Mid | 17 | 18 | ||||
| Quick | 10 | 24 |
