Product Details:
|
| Max Pulling Speed: | 2*1.2 Km/h | Oversize: | 4450*2250*2700 Mm |
|---|---|---|---|
| Maximum Tension: | 2*35/1*70 KN | Max Velocity: | 32mm |
| Weight: | 6500kg | Rated Pulling Force: | 2*30/1*60KN |
| Highlight: | tension stringing equipment,cable puller tensioner |
||

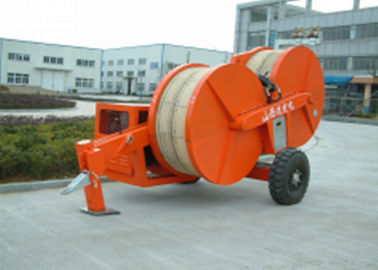

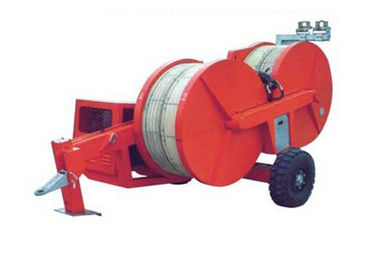

Cable Tensioners 7 Ton Hydraulic Tensioner for Electrical Cable Release or Pulling
Application
7 Ton Hydraulic Puller Tensioner is used to string various conducts and earthwire
Feature
1 Bullwheel with wearproof MC nylon lining segments.
2 Infinitely variable tension control and constant tension conductor stringing .
3 Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety
4 attached two sets of hydraulic power input interface to connect the hydraulic conductor reel stand .
Main component
1 Engine :Chinese famous brand water–cooled engine .
2 main pump and main motor : Rexroth (BOSCH )
3 Reducer : RR(Italian) or Rexroth
4 hydraulic valve : Rexroth (BOSCH )
5 radiator :AKG
6 hydraulic instrument :
7 it can choose :Deutz air–cooled engine .
Quality Control
We have the complete production equipments and professional production team to manage the whole process from producing to packing and shipping.All of the products will be 100% tested before the delivery to ensure the quality of our products.
Our Values
1 Take First-Class Quality as Target and First-class Service.
2 As Responsibility, To Succeed By Scientific Management.
3 Customer in Heart, Quality in Hand, Technology in the Lead.
Technical Data
| Model Type | YQZ2×35 |
| Overall Size(MM) | 4450*2250*2700 |
| Weight(KG) | 6500 |
| Max Tension(KN) | 2*35/1*70 |
| Max Continual Tension(KN) | 1*30 / 1*70 |
| Max Velocity(km/h) | 5 |
| Diameter of Tension wheel(mm) | 1200 |
| Slot No. of Tension wheel | 2*5 |
| Rated Pulling Force (KN) | 2*30/1*60 |
| Max Pulling Speed(km/h) | 2*1.2 km/h |
| Max dia of wire | Φ32mm |
| Engine Power | 49KW/ 2500 r/min |
| Voltage | 12V |
