Product Details:
|
| Item: | 3 Ton Cable Drum Winch Hoist With Yamaha Engine Power | Type: | Gasoline Engine Winch |
|---|---|---|---|
| Power: | 7HP | Dimension(mm): | 850*450*500 |
| Weight(kg): | 80 | Rated Loading Capacity: | 3 Ton |
| Max Pulling Speed: | 8 | Certification: | ISO |
| Color: | Can Be Ordered | Standard Or Nonstandard: | Standard |
| High Light: | cable stringing equipment,conductor stringing equipment |
||

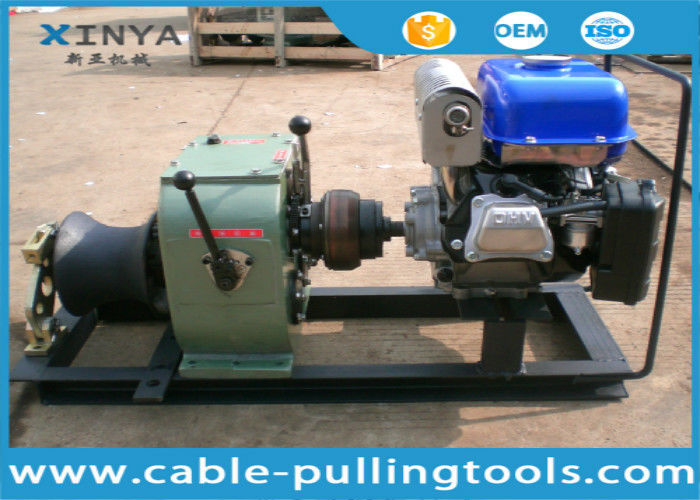

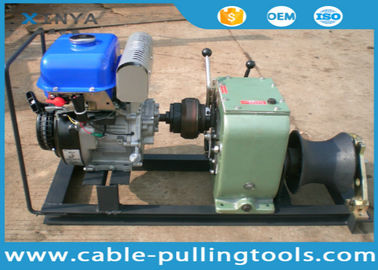

3 Ton Cable Drum Winch Manufacturer with Yamaha Gas Engine Power
3 Ton Cable Drum Winch Manufacturer with Yamaha Gas Engine Powere is used for tower erection,pole setting,stringing wire in electrical power line construction.
Winch can be modified as per requirement, such as changing curve capstan into straight even
cylindrical shape and coming with steel rope.
Features
1 small size & compact structure.
The machine is now supported by gasoline engine, diesel engine, electric or imported gasoline engine.
2 high efficiency.
It reduces the labor intensity, improves working efficiency with less operators and convenient field command.
3 light weight.
For example, the weight of 3 Ton Cable Drum Winch Manufacturer with Yamaha Gas Engine Powered is 88 kgs. Equipped with diesel engine or motor, the winch is 108 kg. Equipped with imported gasoline engine, the winch is only 82 kg, which is very convenient transported. They are especially suitable for line construction in water area and mountain. String machine equipped with a small capstan, can also be used for a vertical rod, wire. One machine with two function in the wildfield helps to reduce crop losses.
4safe and reliable.
The machine has the interlocking brake device, accurate positioning, excellent braking performance , flexible usage, safety and trust.
5 widely used.
According to customers’ response and field investigation, this machine has wide usage, such as rod up, a vertical rod, the pull rod, line release, line reel, the bridge plate traction, lifting and other purposes.
Technical Data
| Model Type | Engine Power | Gear | Pulling Speed(m/min) | Line Pull(Ton) |
| JJM3Q | Petrol engine 7HP | Slow | 9 | 1.8 |
| Quick | 30 | 1.0 | ||
| Reverse | 3.5 |
Different Types of Winches
| Model | Engine | Gear | Pulling Speed(m/min) | Rated Pulling Force(Ton) | Weight(Kg) |
| JJQ-1 | HONDA Petrol engine 4 HP | (Slow) | 10.0 | 0.8 | 36 |
| (Fast) | 15.0 | 0.6 | |||
| Reverse | 12.0 | No Lifting! | |||
| JJD-1 | Electric motor 2.2kw | (Slow) | 10.0 | 0.8 | 46 |
| (Fast) | 15.0 | 0.6 | |||
| Reverse | 12.0 | No Lifting! | |||
| JJQ-3 | HONDA Petrol engine(6HP)or Homemade Petrol engine | (Slow) | 5.0 | 3.0 | 82 |
| (Fast) | 9.0 | 1.8 | |||
| Reverse | 4.0 | No Lifting! | |||
| JJC-3 | Diesel engine(4HP) | (Slow) | 6.0 | 3.0 | 108 |
| (Fast) | 11.0 | 1.8 | |||
| Reverse | 4.5 | No Lifting! | |||
| JJQ-5 |
YAMAHA Petrol engine (9HP) or Homemade Gasoline engine |
(Slow) | 5.0 | 5.0 | 145 |
| (Fast) | 9.0 | 2.5 | |||
| Reverse | 3.2 | No Lifting! | |||
| JJC-5 | Diesel engine(6.6HP) | (Slow) | 5.0 | 5.0 | 180 |
| (Fast) | 9.0 | 2.5 | |||
| Reverse | 3.2 | No Lifting! | |||
| JJQ-8 |
HONDA Petrol engine or homemade petrol engine 13HP |
(Slow) | 3.0 | 8.0 | 168 |
| (Fast) | 5.0 | 3.0 | |||
| Reverse | 3.0 | No Lifting! | |||
| JJC-8 | Diesel engine 10.5HP | (Slow) | 4.0 | 8.0 | 230 |
| (Fast) | 7.5 | 3.0 | |||
| Reverse | 3.7 | No Lifting! |
