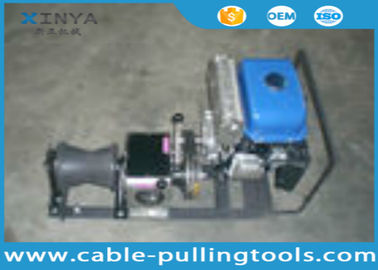

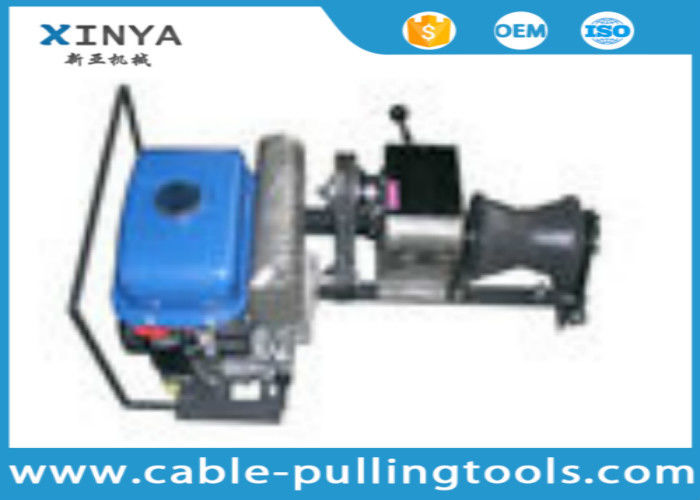

Power Construction 1 Ton Construction Lifting Winch With Gasoline Engine

Power Construction 1 Ton Construction Lifting Winch With Gasoline Engine
Power Construction 1 Ton Construction Lifting Winch With Gasoline Engine Power Construction 1 Ton Construction Lifting Winch With Gasoline Engine

Large Image :  Power Construction 1 Ton Construction Lifting Winch With Gasoline Engine

Product Details:
Place of Origin: Jianghsu, China
Brand Name: XINYA
Certification: BV,ISO
Model Number: JJM1Q
Payment & Shipping Terms:
Minimum Order Quantity: 2 sets
Price: US $700 - 1,200 / Set
Packaging Details: standard export wooden case
Delivery Time: 10 days after payment
Payment Terms: L/C, T/T,
Supply Ability: 500 set/sets per month

Power Construction 1 Ton Construction Lifting Winch With Gasoline Engine

Description
Power Source: Gasoline Application: Cranes
Capacity: 10KN Usage: Construction Hoist
Warranty: One Year Weight(kg): 36
Dimension(mm): 770*500*380 Rated Power: 4HP
High Light:

cable stringing equipment

,

wire pulling tools

Supply High Quality Petrol Engine Powered 1 Ton Winch For Sale





Application



Petrol Engine Powered 1 Ton Winch For Sale  is used for tower erection,pole setting,stringing wire in electrical power line construction.

Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical  shape and coming with steel rope.



Our Values



Take First-Class Quality as Target and First-class Service.

As Responsibility, To Succeed By Scientific Management.

Customer in Heart, Quality in Hand, Technology in the Lead.



Quality Control



We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.



Technical Data



Model NO. Engine Gear Pulling Speed(m/min) Rated Pulling Force(Ton) Weight(Kg)
JJM1-Q HONDA Petrol engine 4 HP Slow 10.0 0.8 36
Fast 15.0 0.6
Reverse 12.0 No Lifting!
Electric motor Slow 10.0 0.8 46
Fast 15.0 0.6
Reverse 12.0 No Lifting!



Power Construction 1 Ton Construction Lifting Winch With Gasoline Engine 0
