Product Details:
|
Type: | 1.2 - 6.75KG | Material: | Steel |
---|---|---|---|
Application: | Lifting | Rated Load: | 5- 80 KN |
For: | Rope Lifting Pulley Blocks(Steel Sheave) | Usage: | Lifting |
High Light: | wire rope pulley block,cable hoist puller |
Introduction
Lifting sheave pulley block is a equipment for laying,pulling,guiding and protecting cable/rope/wire,which is a great way to save time and money. It is aslo called cable pulleys,cable sheaves and so on.Our cable roller often made of nylon and aluminium two materials,the frame is often made of steel and galvanized.It can be used in single one,aslo can be used in series.There are many types for the cable rollers,such as straight cable roller,coner cable rollers,manhole cable rollers, cable feeding sheaves,right angle rollers,hook type sheaves,gin wheel cable roller,single sheave pulley block,double/twin sheave block and so on.
Application

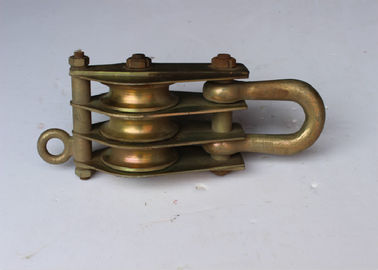

This puley block is used for lifting .It can be used in single,also can be used as a pulley blocks .

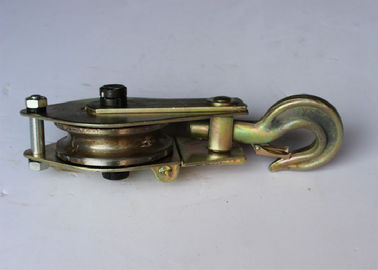

The material is steel,the hook would be opened and closed.
Quality Control
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.
Our Values
1 Take First-Class Quality as Target and First-class Service.
2 As Responsibility, To Succeed By Scientific Management.
3 Customer in Heart, Quality in Hand, Technology in the Lead.
Technical Data

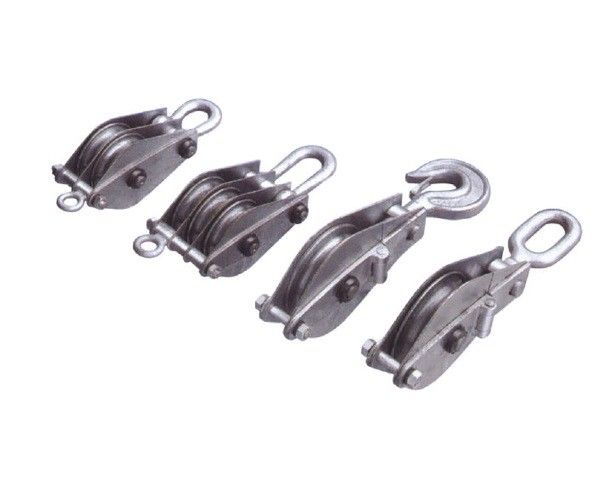

Notes :you must explain clearly which style you needed in writing contract ,hook style (G),round eye style (H)or clevis (B).
Order number |
Model |
Number of sheaves |
Rated load (kN) |
Outside diameter×width(mm) |
Diameter of rope (mm) |
Weight (kg) |
Hoisting point type |
||
11181 |
QH1-1K |
1 |
10 |
Φ100×31 |
Φ7.7 |
2.8 |
G |
H |
|
11182 |
QH1-2 |
2 |
10 |
Φ80×28 |
Φ6 |
2.8 |
G |
H |
|
11183 |
QH1-3 |
3 |
10 |
Φ80×27 |
Φ6 |
4.1 |
G |
H |
|
11191 |
QH2-1K |
1 |
20 |
Φ120×35 |
Φ9.3 |
4.2 |
G |
H |
B |
11192 |
QH2-2 |
2 |
20 |
Φ100×31 |
Φ7.7 |
4.2 |
G |
H |
|
11193 |
QH2-3 |
3 |
20 |
Φ100×31 |
Φ7.7 |
6 |
G |
H |
|
11201 |
QH3-1K |
1 |
30 |
Φ150×39 |
Φ11 |
7 |
G |
H |
B |
11202 |
QH3-2 |
2 |
30 |
Φ120×35 |
Φ9.3 |
5.3 |
G |
H |
|
11203 |
QH3-3 |
3 |
30 |
Φ100×31 |
Φ7.7 |
6.5 |
G |
H |
|
11211 |
QH5-1K |
1 |
50 |
Φ166×40 |
Φ13 |
9.6 |
G |
H |
B |
11212 |
QH5-2 |
2 |
50 |
Φ150×39 |
Φ11 |
10.8 |
G |
H |
|
11213 |
QH5-3 |
3 |
50 |
Φ120×35 |
Φ9.3 |
7.7 |
G |
H |
|
11221 |
QH8-1K |
1 |
80 |
Φ205×50 |
Φ17 |
12.5 |
G |
H |
B |
11222 |
QH8-2 |
2 |
80 |
Φ166×40 |
Φ13 |
17 |
G |
H |
|
11223 |
QH8-3 |
3 |
80 |
Φ150×39 |
Φ11 |
17.5 |
G |
H |
|
11231 |
QH10-1K |
1 |
100 |
Φ246×60 |
Φ18.5 |
25 |
G |
|
B |
11232 |
QH10-2 |
2 |
100 |
Φ166×40 |
Φ13 |
18.5 |
|
H |
|
11233 |
QH10-3 |
3 |
100 |
Φ150×39 |
Φ11 |
20 |
|
H |
|
11241 |
QH15-1K |
1 |
150 |
Φ280×65 |
Φ21.5 |
34 |
|
|
B |
11242 |
QH15-2 |
2 |
150 |
Φ205×50 |
Φ17 |
22 |
|
H |
|
11243 |
QH15-3 |
3 |
150 |
Φ166×40 |
Φ13 |
26 |
|
H |
|
11244 |
QH15-4 |
4 |
150 |
Φ150×39 |
Φ11 |
30 |
|
H |
|
11248 |
QH20-4 |
4 |
200 |
Φ205×50 |
Φ17 |
