Product Details:
|
| Rated Pressure(Mpa): | 70 | Type: | Hydraulic Hand Pump |
|---|---|---|---|
| Weight(KG): | 8 | Pressure: | Oil, Power Construction |
| Model: | CP-390 | Oil Capacity: | 350cc |
| Length: | 450mm | Weight: | 8.1kg |
| High Light: | block and tackle hoist,cable hoist puller |
||

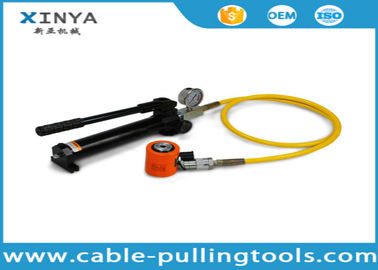

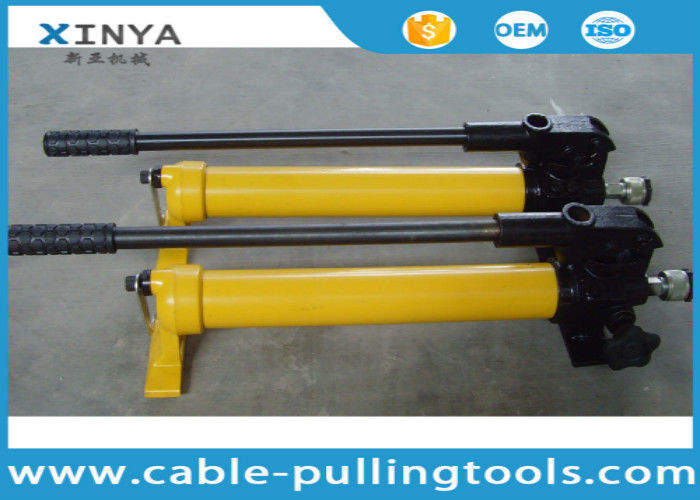

CP-390 Small High Pressure Hand Pump Manual Hydraulic Pump
Application
It can provide power for the cutting tool, the hydraulic compressor, punching machine.and other construction machinery, which is operated in the wild field in electric power,railway, rescue, construction and other industries.
Features
1) Safe and Reliable
2) Light in weight
3) Convenient and flexible
5) Save time and labor
6) High efficiency
7) Durable
Technical Data
| Model | LH-CP700 | LH-CP700D | LH-CP180 | LH-CP390 |
| Max output pressure | 700kg/cm2 | 700/1000kg/cm2 | 180kg/m2 | 600kg/m2 |
| Oil capacity | 350cc | 2100cc | 350cc | 350cc |
| Length | 360mm | 450mm | 360mm | 460mm |
| Weight | 5.0kg | 4.5kg | 3.5kg | 8.1kg |
| Piston direction | single action | double action | single action | single action |
