Product Details:
|
| Power Source: | Yamaha Petrol Engine | Application: | Cable Push Pull |
|---|---|---|---|
| Capacity: | 3 Ton | Rated Loading Capacity: | 1/3Ton |
| Max Pulling Speed: | 24.3m/min | Usage: | Retractable Cable |
| Type: | Cable Winch Puller | Certificaton: | ISO |
| Color: | Can Be Customized | Selling Point: | Cable Drum Winch |
| High Light: | wire rope pulley block,cable hoist puller |
||

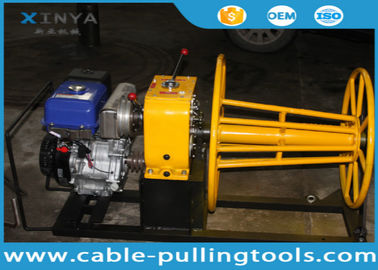

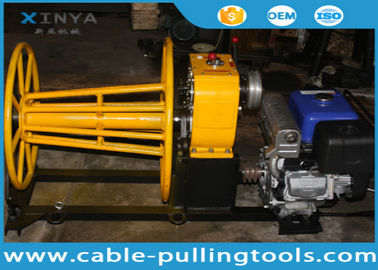

3 Ton Cable Pulling Winch Machiner With Cable Drum For Sale
Application
It is used for tower erection, stringing in electric power line construction.
YAMAHA Engine
Model Name MZ360
Type air-cooled 4-stroke OHV gasoline
Aperture × 85 × 63mm stroke
Displacement 357cm3
Rated power 7.1 / 3600kW / rpm
Maximum torque of 21.2 / 2000Nm / rpm
Fuel Unleaded Gasoline
Fuel tank capacity 6.7L
Lubricant volume 1.1L
Start mode manual
Ignition T.C.I.
Spark Plug NGK BPR4ES
Dimensions 399x451x444 450x451x444
(L x W x H) mm
Weight 32kg
Quality Control
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.
Our Values
1,Take First-Class Quality as Target and First-class Service.
2,As Responsibility, To Succeed By Scientific Management.
3,Customer in Heart, Quality in Hand, Technology in the Lead.
Technical Data
| Product No. | Model Type | Rated Load(KN) | Pulling Speed(m/min) | Motor Power | Weight(kg) |
| 80038 | SFJ-30 | 30 | 7.5-14 | Gasoline engine | 160 |
| 80039 | SFJ-50 | 50 | 13.3-24.3 | Gasoline engine | 180 |
