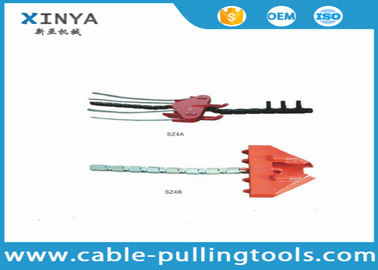

SZ4A-13 130KN Balancing Head Boards Running Board for Four bundle conductors

SZ4A-13 130KN Balancing Head Boards Running Board for Four bundle conductors
SZ4A-13 130KN Balancing Head Boards Running Board for Four bundle conductors

Large Image :  SZ4A-13 130KN Balancing Head Boards Running Board for Four bundle conductors

Product Details:
Place of Origin: Jiangsu , China
Brand Name: XINYA
Certification: ISO9001
Model Number: SZ4A-13
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Get Latest Price
Packaging Details: standard export wooden case or according to your opotion
Delivery Time: within 7 days after payment
Payment Terms: L/C, T/T,
Supply Ability: 1000 Piece/Pieces per Month

SZ4A-13 130KN Balancing Head Boards Running Board for Four bundle conductors

Description
Rated Load: 130KN Weight (kg): 96
Marks: Balance Pulley Structure Application: Stringing 4 Bundled Conductors
Warranty: 1 Year Item: 4 Bundled Running Board
High Light:

wire rope pulley block

,

cable hoist puller

SZ4A-13 130KN Balancing Head Boards Running Board for Four bundle conductors





Application:
It is used for stringing 4 bundled conductors, to connect the pilot wire rope with conductors.
The vertical heavy links hold running board in horizontal position for correct entrance into stringing blocks.
The balance pulley type is normally used for 2 bundled conductors which are pulled from same bull wheels of tensioner.

Data Sheet
Item No. Model Description Rated Load (KN) Weight (kg) Marks
17231 SZ4A-13 Used for 660X100 stringing block 130 96 Balance pulley structure
17232 SZ4B-13 Used for 660X100 stringing block 130 65 Conductors are stringing separately from different bull wheels
17233 SZ4B-18 Used for 822X110 stringing block 180 110
17234 SZ4B-25 Used for 822X110 stringing block 250 110
17238 SZ4C-25 Used for 822X110 stringing block 250 110
17239 SZ4B-32 Used for 1024X125 stringing block 320 125

SZ4A-13 130KN Balancing Head Boards Running Board for Four bundle conductors 0
