Product Details:
|
| Application: | Overhead Transmission Line | Frame: | Steel |
|---|---|---|---|
| Size: | 508/660/916mm | Usage: | Stringing |
| Type: | Block And Tackle | Material Of Sheave 1: | Nylon Sheave |
| Material Of Sheave 2: | Aluminum Sheave | ||
| High Light: | block and tackle hoist,cable hoist puller |
||

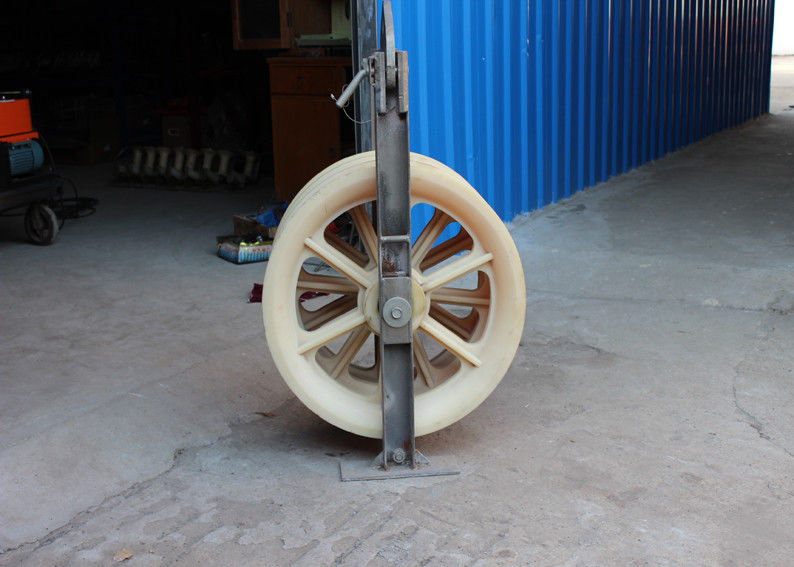

Nylon Material Large Diameter Stringing Pulley Block to Release the Wire
Application and Features
Large diameter Stringing Block And Tackle is used to release the wire in the overhead transmission line.
And it can be used for single conductor, double split wire, four split wire, six split wire and so on
Quality Control
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.
Our Values
1 Take First-Class Quality as Target and First-class Service.
2 As Responsibility, To Succeed By Scientific Management.
3 Customer in Heart, Quality in Hand, Technology in the Lead.
Technical Data for 916 Large diameter Stringing Block And Tackle
| Product No. | Model Type | Rated Load(KN) | Applicable Conductor ACSR(mm2) | Weight(kg) | Sheave No. | Outside Dia*Groove Dia*Sheave Width(mm) |
| 80328 | SHDN-916*110 | 50 | ≤ 800 | 51 | 1 | Φ916*Φ800*110 |
| 80329 | SHSQN-916*110 | 75 | 120 | 3 | ||
| 80330 | SHWQN-916*110 | 150 | 200 | 5 | ||
| 80331 | SHQQN-916*110 | 180 | 270 | 7 |
