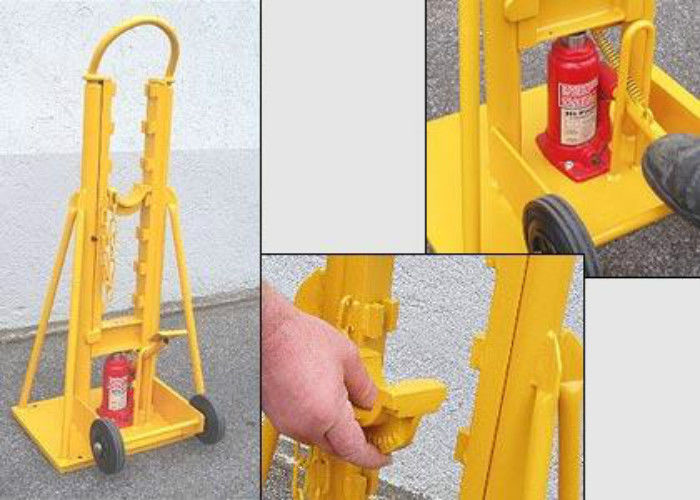

20 Ton Hydraulic Cable Drum Jack Cable Jack Stand For Stringing Cable

20 Ton Hydraulic Cable Drum Jack Cable Jack Stand For Stringing Cable
20 Ton Hydraulic Cable Drum Jack Cable Jack Stand For Stringing Cable 20 Ton Hydraulic Cable Drum Jack Cable Jack Stand For Stringing Cable

Large Image :  20 Ton Hydraulic Cable Drum Jack Cable Jack Stand For Stringing Cable

Product Details:
Place of Origin: JIangsu , China
Brand Name: XINYA
Certification: ISO
Model Number: SY-20
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: standard export plywood case
Delivery Time: 15 days after payment
Payment Terms: L/C, T/T,
Supply Ability: 100 Set/Sets per Month

20 Ton Hydraulic Cable Drum Jack Cable Jack Stand For Stringing Cable

Description
Usage: Stringing Rated Load (KN): 200
Weight Of Wire Reel (T): Less Than 20 Weight (kg): 150
Type: Hydraulic Reel Stand Selling Point: Cable Drum Jack
High Light:

cable laying equipment

,

cable tower machine

20 Ton Hydraulic Cable Drum Jack Cable Jack Stand For Stringing Cable



Application

It is applicable to the placement of the cable tray, with hydraulic lifting.



Features

It is applicable to be as the support of large cable reel in laying cables in the city.

It is easy to move with the trundles in the bottom.

It can be equipped with a braking device, using the foot brake.



Technical Data

Product No. Model Type Rated Load(KN) Outside Dia of reel(mm) Reel weight(T) Weight(kg)
80473 SY-15 150 ≤ Φ3200 ≤ 15 130
80474 SY-20 200 ≤ Φ3600 ≤ 20 150



Other Types

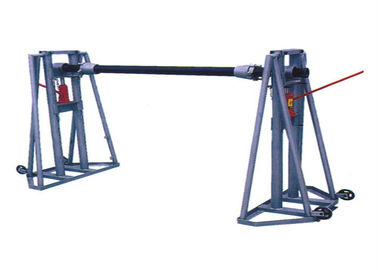

20 Ton Hydraulic Cable Drum Jack Cable Jack Stand For Stringing Cable 0



Related Tools-Cable Pulley

20 Ton Hydraulic Cable Drum Jack Cable Jack Stand For Stringing Cable 1



Cable pulley widely used for the cable laying contractor, utility and electricity supply industry – this includes straight cable rollers, corner cable rollers, triple cable rollers and specialist cable rollers for pulling underground cables into trenches . Cable rollers should always be used when pulling cables.

Straight cable runs are pulled in using straight cable rollers suitably placed in the cable trench to prevent the cable being dragged on the trench bottom or in mud - cable roller spacing is dependent on cable type being laid and the cable pulling tension along the route. Leading cable rollers are used to support the cable over the entire drum width immediately before being pulled into the trench.



The cable pulley Features:

1) We manufacture a lot of models Cable pulling block for different uses in the overhead transmission line construction.

2) The cable pulley is used to support conductors, OPGW,ADSS, communication lines

3) The cable pulley is made from high strength MC nylon, aluminum, the frame are made of galvanized steel.

4) High strength and flexibility, easy to use, light weight, wearresisting, and long service life.



The cable pulley Advantages:

1) Usage: For delivery of underground cables, used in extended release cable for high- speed single round of linear wheel bearings are not to hurt the cable wheel material steel aluminum cattle dragon can be based on your need to select.

2) The cable pulley can be installed on a different cable.

3) Pulley material classification: a steel pulley with spherical bearings, the second nylon wheel with plain bearings,aluminum alloy wheel with sliding bearings.



The cable pulley application:

For cable change the direction of the extended release, protect the cable from friction, according to the needs of multiple combined into any corner bend.
