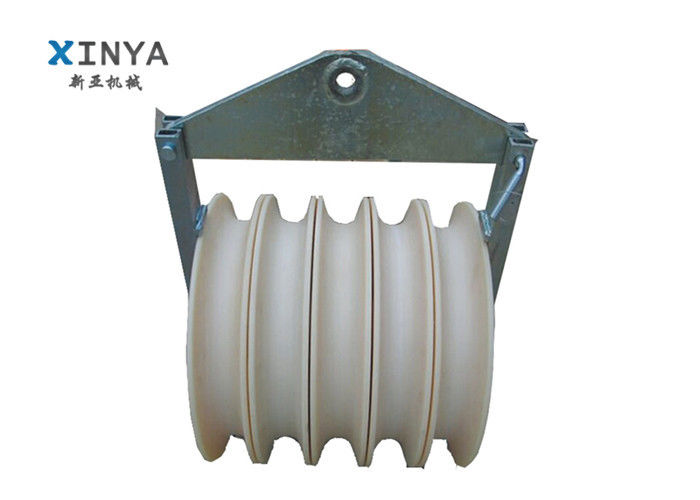

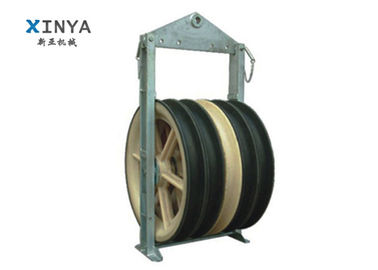

Transmission Line Stringing Tools 916mm Diameter Stringing Pulley Block for Conductor

Transmission Line Stringing Tools 916mm Diameter Stringing Pulley Block for Conductor
Transmission Line Stringing Tools 916mm Diameter Stringing Pulley Block for Conductor Transmission Line Stringing Tools 916mm Diameter Stringing Pulley Block for Conductor

Large Image :  Transmission Line Stringing Tools 916mm Diameter Stringing Pulley Block for Conductor

Product Details:
Place of Origin: Jiangsu, China
Brand Name: XINYA
Certification: ISO
Model Number: SHD-916x110
Payment & Shipping Terms:
Minimum Order Quantity: 1 pieces
Price: Get Latest Price
Packaging Details: standard carton or according to your requirements
Delivery Time: 15-25 days after payment
Payment Terms: L/C, T/T,
Supply Ability: 1000 piece/pieces per month

Transmission Line Stringing Tools 916mm Diameter Stringing Pulley Block for Conductor

Description
Rated Load: 50-180 KN Groove Dia: 800 Mm
Pulley Material: MC Nylon Sheave Width: 110 Mm
Outside Dia: 916 Mm Usage: Stringing
High Light:

block and tackle hoist

,

wire rope pulley block

Transmission Line Stringing Tools 916mm Diameter Stringing Pulley Block for Conductor



Application and Features

916mm MC Nylon large diameter stringing pulley block and tackle
Application
916mm MC Nylon large diameter stringing pulley block and tackle is used for stringing wire in electric power transmission line construction.


Note:
1.Maximum suitable conductor ACSR720
2.Sheave dimension (outside diameter *root diameter*sheave width)Φ916*Φ800*110mm
3.The middle sheave can be customized as cast steel sheave.

Features: 1.Nylon sheave ; 2.Sheave number:1-7 ; 3.Used to pay off wire or cable.



Our Values

1, Take First-Class Quality as Target and First-class Service.

2, As Responsibility, To Succeed By Scientific Management.

3, Customer in Heart, Quality in Hand, Technology in the Lead.



Quality Control

We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.



Technical Data

Product No. Model Type Rated Load(KN) Applicable Conductor ACSR(mm2) Weight(kg) Sheave No. Outside Dia*Groove Dia*Sheave Width(mm)
80328 SHDN-916*110 50 ≤ 800 51 1 Φ916*Φ800*110
80329 SHSQN-916*110 75 120 3
80330 SHWQN-916*110 150 200 5
80331 SHQQN-916*110 180 270 7
