Product Details:
|
| Type: | Swivel Links | Rated Load: | 30 - 160KN |
|---|---|---|---|
| Outter Diameter: | 26 - 65 Mm | Groove Width: | 12 - 28mm |
| Weight: | 0.4 - 3.7kg | Application: | Release Wire Rope Twisting. |
| High Light: | block and tackle hoist,wire rope pulley block |
||

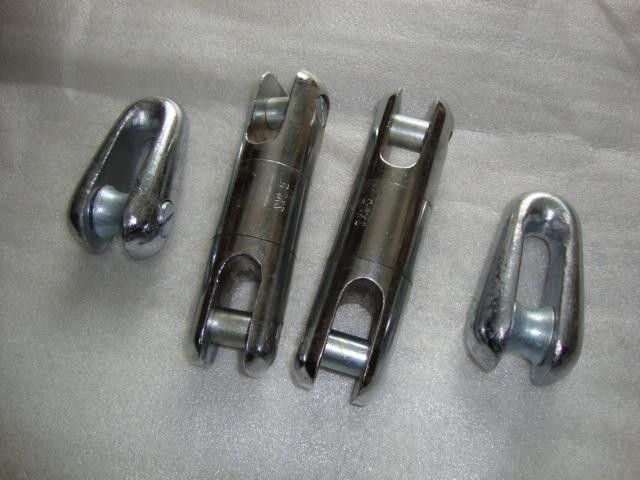

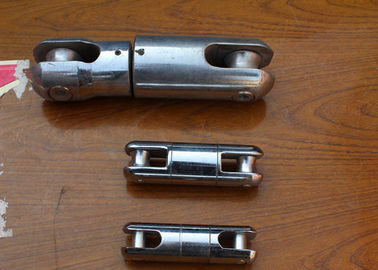

Transmission Line Stringing Tools Swivel Links Cable Connector
Application
In transmission line, traction of wire or underground cables, the Steel Cable high strength Swivel connector is used to connect with the net sleeve and wire rope, in order to release wire rope twisting.
It adopts alloy tool steel.
Features
It is high strength, light weight,
and it can smoothly go through the machine traction pulley and the tension machine.
Technical Data
| Model | Main Size(mm) | Rated Load(KN) | Weight(KG) | ||||
| A | B | C | D | E | |||
| SLX-0.5 | 19 | 61 | 40 | 8 | 9 | 5 | 0.2 |
| SLX-1 | 30 | 100 | 70 | 12 | 13 | 10 | 0.4 |
| SLX-2 | 35 | 120 | 90 | 14 | 14 | 20 | 0.55 |
| SLX-3 | 37 | 129 | 95 | 16 | 16 | 30 | 0.65 |
| SLX-5 | 42 | 154 | 116 | 18 | 17 | 50 | 1.5 |
| SLX-6.5 | 51 | 185 | 140 | 20 | 19 | 65 | 2.0 |
| SLX-8 | 57 | 220 | 165 | 24 | 22 | 80 | 2.4 |
| SL80Y | 57 | 207 | 152 | 24 | 20 | 80 | 2.4 |
| SL130 | 62 | 248 | 192 | 26 | 24 | 130 | 3.5 |
| SL180 | 75 | 294 | 222 | 26 | 26 | 180 | 7.2 |
| SL250 | 85 | 331 | 251 | 30 | 30 | 250 | 10.6 |
| SL250Y | 80 | 323 | 243 | 30 | 30 | 250 | 8.0 |
| SL320 | 85 | 346 | 264 | 38 | 30 | 320 | 9.7 |
| SL400 | 100 | 383 | 293 | 43 | 33 | 400 | 17 |
