Product Details:
|
| Rated Load: | 5 KN | Application: | Stringing |
|---|---|---|---|
| Type: | Stringing Block | Certificate: | ISO9001 |
| Item: | Light Weight Single Sheave Stringing Pulley Block With Nylon Wheel For ACSR 25-70mm2 | Wheel Size: | 120*30mm |
| Wheel Material: | Nylon | ||
| High Light: | wire rope pulley block,cable hoist puller,Single Sheave Stringing Pulley Block |
||

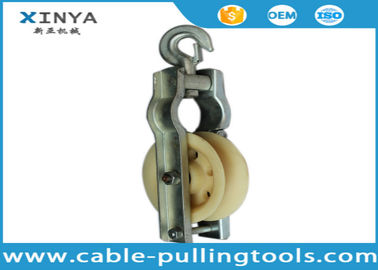

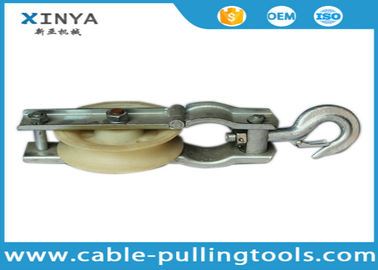

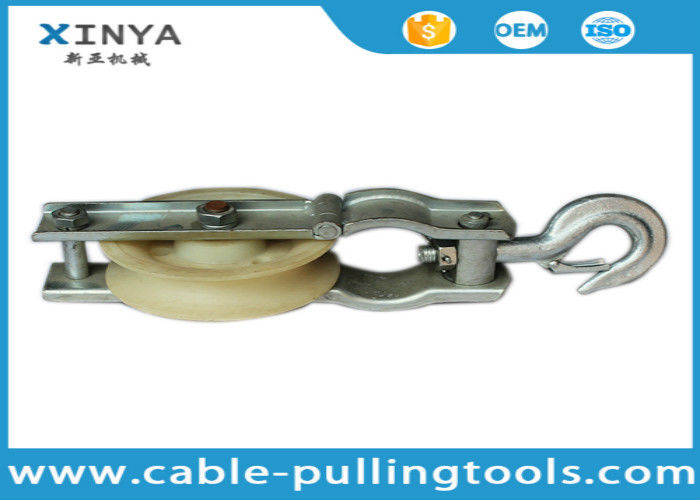

Light Weight Single Sheave Stringing Pulley Block With Nylon Wheel for ACSR 25-70mm2
Application
It is used for releasing the aluminum wire, ACSR, insulated wire in pole and tower erection.
Features
The wheel groove can be through with clamp pipe, aluminum tube, connector etc..
The material is aluminum alloy and MC nylon .
Pulley pendant is combined plate and hook type.
in Heart, Quality in Hand, Technology in the Lead.
Specifications of nylon cable pulleys
1) nylon pulleys could be used for releasing insulated wires and cables in transmission line.
2) very smoothly
3) kind: single wheel nylon pulleys, double wheels nylon pulleys, three wheels nylon pulleys
4) material:nylon wheels
Technical Data
| Product No. | Model Type | Applicable Condcutor(mm2) | Rated Load(KN) | Weight(kg) | Material of Wheel |
| 80335 | SHD-120*30 | LGJ25-70 | 5 | 2 | Aluminum wheel |
| 80336 | SHD-160*40 | LGJ95-120 | 10 | 3.2 | Aluminum wheel |
| 80337 | SHD-200*40 | LGJ150-240 | 15 | 3.8 | Aluminum wheel |
| 80338 | SHD-200*60 | LGJ150-240 | 15 | 4.2 | Aluminum wheel |
| 80339 | SHD-250*40 | LGJ150-240 | 20 | 5.2 | Aluminum wheel |
| 80340 | SHD-250*60 | LGJ300-400 | 20 | 5.5 | Aluminum wheel |
| 80341 | SHD-270*60 | LGJ300-400 | 20 | 6.8 | Aluminum wheel |
| 80342 | SHD-320*60 | LGJ300-400 | 20 | 10.5 | Aluminum wheel |
| 80343 | SHD-400*80 | LGJ400-500 | 20 | 12 | Aluminum wheel |
| Product No. | Model Type | Applicable Conductor ACSR(mm2) | Rated Load(KN) | Weight(kg) | Matetrial of wheel |
| 80344 | SHDN-120*30 | 25-70 | 5 | 1.5 | MC Nylon |
| 80345 | SHDN-160*40 | 95-120 | 10 | 2.4 | MC Nylon |
| 80346 | SHDN-200*40 | 150-240 | 15 | 2.6 | MC Nylon |
| 80347 | SHDN-200*60 | 150-240 | 15 | 3.1 | MC Nylon |
| 80348 | SHDN-250*40 | 150-240 | 20 | 3.7 | MC Nylon |
| 80349 | SHDN-250*60 | 300-400 | 20 | 3.9 | MC Nylon |
| 80350 | SHDN-270*60 | 300-400 | 20 | 4.4 | MC Nylon |
| 80351 | SHDN-320*60 | 300-400 | 20 | 7.5 | MC Nylon |
| 80352 | SHDN-408*75 | 400-500 | 20 | 11 | MC Nylon |
