Product Details:
|
| Power Source: | Electric, Electric Engine | Weight(kg): | 160 |
|---|---|---|---|
| Application: | 1050*850*630 | Type: | Electric Winch |
| Rated Loading: | 5 Ton | Rated Power: | 4KW |
| High Light: | cable drum trailer,cable tower machine |
||

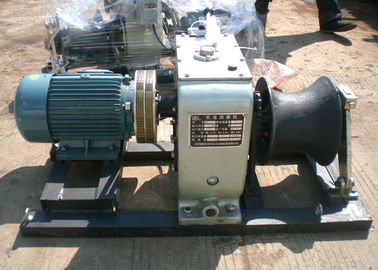

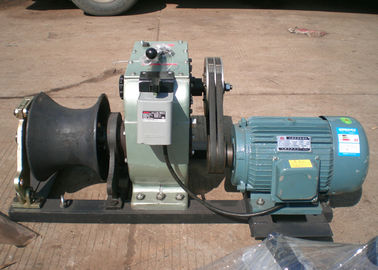

5 Ton Electric Engine Powered Hoist Winch for Power Construction
Application
5 Ton Electric Engine Powered Hoist Winch is used for tower erection,pole setting,stringing wire in electrical power line construction.Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
Operation methods
1: before turning on the machine,you must turn on the clutch first and put the racker for crosspiece-changing in the zero position
2: when moving the crosspiece,you should be quick.Otherwise the brake won’t work well.when turning on the machine,you shouldn’t work too fiercly
3: when changing the crosspiece position,you must turn on the clutch.Otherwise the gear will be damaged.After that,you should check whether the changing job is well done.Make sure you haven’t changed two crosspieces in one time.
The History Of Company
Established in 1983,registered capital of 5,000,000 RMB,Changshu Xinya Machinery Manufacturing Co.,Ltd.specializes in design,production and sales of electric power construction tools such as 1 ton,2 ton,3 ton,5 ton,8 ton JJM series gasoline engine/diesel engine/electric engine powered winch,tension machine,traction machine;high pressure hydraulic pump;125T&200T hydraulic crimping compressor head;manual pressure pliers;high-strength aluminum alloy wire come along clamp,lifting tackle,wire pulley,cable pulley and so on.We also manufacture various types of large-tonnage forklift mast and a variety of special requirements of non-standard forklift frame.
Our company has passed ISO9001 and BV certificate of company inspection.Based on the principle of seeking for greater perfection,our company constantly improves the quality control system,strengthens the service consciousness of our employees,implements management philosophy of high quality and good service.
Quality Control
We have the complete production equipments and professional production team to manage the whole process from producing to packing and shipping.All of the products will be 100% tested before the delivery to ensure the quality of our products.
Our Values
1, Take First-Class Quality as Target and First-class Service.
2, As Responsibility, To Succeed By Scientific Management.
3, Customer in Heart, Quality in Hand, Technology in the Lead.
Technical Data for 5 Ton Electric Engine Powered Hoist Winch
| Model Type | Engine Power | Gear | Pulling Speed(m/min) | Pulling Force(Ton) | Dimesion(mm) | Weight(kg) |
| JJM5-D | Electric Engine | Slow | 3 | 5 | 1050*850*630 |
130 |
| Quick | 4 | 3 | ||||
| Reverse | 3 | NO Lifting |
