Product Details:
|
| Steel Grade: | Wire | Wire Gauge: | 7-15mm |
|---|---|---|---|
| Application: | Construction, Crane | Special Use: | Free Cutting Steel |
| Manufacturing Experince: | Over 20 Year | Diameter: | 8-30mm |
| Item: | Anti-twisting Braided Steel Wire Rope | ||
| High Light: | galvanised steel wire rope,non rotating wire rope |
||

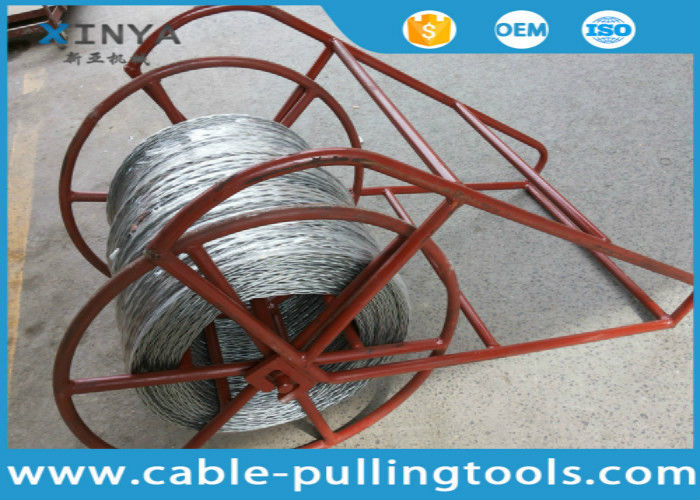

High Strength 9mm 12 Strands Non Rotating Galvanized Steel Wire Rope
Quick details
1. Transmission Line Stringing Accessories
2. Anti-twist Braided Steel Wire Rope Galvanized Size available: 9~30mm
3. Size: 9mm
4. Breakage load: 55kN|
5. 6 Squares 12 Strands
6. Length: 1000m
7. Reel diameter: 1100mm
8. Boyu Brand
Description: 9mm 55kN Anti twist Wire Rope 9mm Galvanized Braided Line Stringing 6 Squares 12 Strands
Anti-twist braided wire rope with high strength hot dip galvanized steel quality air processed by the special process of special woven rope line. It has high strength, good flexibility, corrosion rust-proof, not to fight the golden hook, and difficult to tie, long life and so on. Tension applied to pay-off power lines construction, lifting equipment with the balance shaft and the tail rope of mine, port and other major lift crane wire rope does not rotate when the required place.
|
Item no. |
Normal Diameter (mm) |
Structure |
Breakage tension(kN) |
Standard Length (m) |
Diameter of spool (mm) |
Total weight (kgs) |
|
YL9-12x19W |
9 |
12 Strands |
55 |
1000 |
850 |
294 |
|
YL10-12x19W |
10 |
12 Strands |
55 |
1000 |
850 |
|
|
YL11-12x19W |
11 |
12 Strands |
80 |
1000 |
1000 |
454 |
|
YL13-12x19W |
13 |
12 Strands |
120 |
1000 |
1100 |
642 |
|
YL16-12x19W |
16 |
12 Strands |
158 |
1000 |
1250 |
886 |
|
YL18-12x19W |
18 |
12 Strands |
210 |
1000 |
1400 |
1154 |
|
YL20-12x29Fi |
20 |
12 Strands |
250 |
1000 |
1400 |
1394 |
|
YL22-12X29Fi |
22 |
12 Strands |
320 |
1000 |
1400 |
1258 |
|
YL24-12x29Fi |
24 |
12 Strands |
360 |
800 |
1440 |
1474 |
|
YL28-12x29Fi |
28 |
12 Strands |
480 |
500 |
1600 |
|
|
YL30-12x29Fi |
30 |
12 Strands |
540 |
500 |
1600 |
|
|
YL20-18x19W |
20 |
18 Strands |
300 |
1000 |
1440 |
1368 |
|
YL22-18X29Fi |
22 |
18 Strands |
389 |
800 |
1440 |
|
|
YL24-18x29Fi |
24 |
18 Strands |
440 |
800 |
1440 |
|
|
YL28-18x29Fi |
28 |
18 Strands |
580 |
500 |
1600 |
1655 |
|
YL30-18x29Fi |
30 |
18 Strands |
658 |
500 |
1600 |
1900 |
Structure: 9mm 55kN Anti twist Wire Rope 9mm Galvanized Braided Line Stringing 6 Squares 12 Strands
