| Brand Name: | XINYA |
| Model Number: | Four square |
| MOQ: | 500 meters |
| Price: | US $0.4 - 6 / Meter |
| Delivery Time: | one week after payment |
| Payment Terms: | L/C, T/T, |

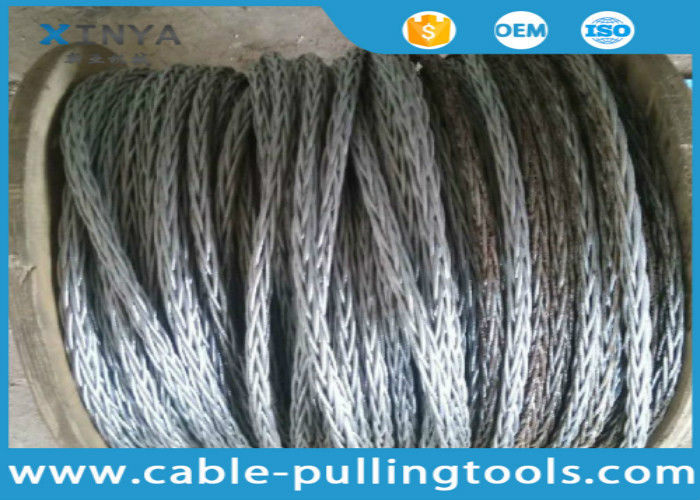

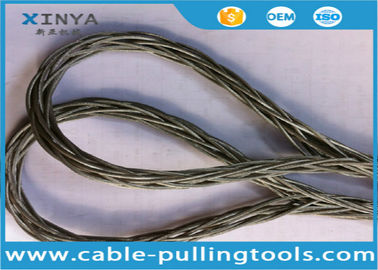

Used In Pulling Conductor Square 12 Strands Galvanized Anti-twisting braided steel wire rope
Application
Anti-twisting Braided Steel Wire Rope is applied to mechanical pulling and tensioning release conductors.
Anti-twisting braided wire rope with high strength hot dip galvanized steel quality air processed by the special process of special woven rope line. It has high strength, good flexibility, corrosion rust-proof, not to fight the golden hook, and difficult to tie, long life and so on. Tension applied to pay-off power lines construction, lifting equipment with the balance shaft and the tail rope of mine, port and other major lift crane wire rope does not rotate when the required place.
Characteristics
1. Braided 1960N/mm2 high -strength galvanized steel wire. If need other levels of strength, contact us.
2. It is not available for small diameter grinding core pulling rope.
Technical Data
We adopt high quality steel rope to braide anti-twisting steel rope.It is used for pulling the conductor in the overhead transmission line.
| Product No. | Type | Dia(mm) | Structure | Approx. weight(kg/m) | Breaking load(kn) |
| 010201 | YS8-12×19W | 8 | Square 12 strands | 0.22 | 43 |
| 010202 | YS9-12×19W | 9 | 0.28 | 55 | |
| 010203 | YS11-12×19W | 11 | 0.48 | 82 | |
| 010204 | YS13-12×19W | 13 | 0.58 | 115 | |
| 010205 | YS15-12×19W | 15 | 0.89 | 158 | |
| 010206 | YS18-12×19W | 18 | 1.15 | 210 | |
| 010207 | YS20-12×19W | 20 | 1.32 | 260 | |
| 010208 | YS22-12×25Fi | 22 | 1.66 | 320 | |
| 010209 | YS24-12×25Fi | 24 | 2.01 | 360 | |
| 010210 | YS26-12×25Fi | 26 | 2.35 | 420 | |
| 010211 | YS28-12×25Fi | 28 | 3.012 | 520 | |
| 010212 | YS30-12×25Fi | 30 | 3.32 | 560 |
