Product Details:
|
| Wire Gauge: | 7-15mm | Type: | Galvanized |
|---|---|---|---|
| Application: | Transmission Line Stringing | Special Use: | Free Cutting Steel |
| Diameter: | 8-30mm | Item: | Anti-twisting Braided Steel Wire Rope |
| Highlight: | galvanised steel wire rope,non rotating wire rope |
||

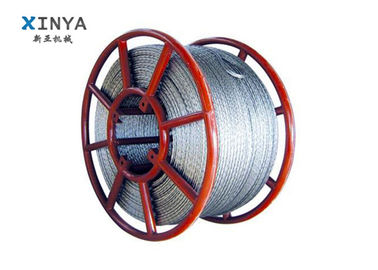

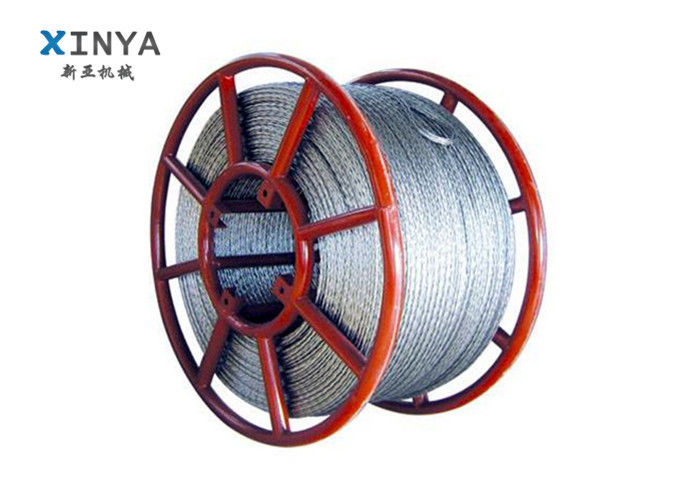

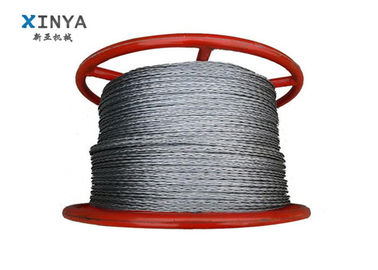

Galvanized Steel Anti Twist Wire Rope for Transmission Line Stringing
Quick details:
1. Transmission Line Stringing Accessories
2. Anti twist Galvanized Steel Wire Rope 6 Squares 12 Strands
3. Normal Diameter: 20mm
4. Breakage load: 250kN
5. Size available: 9~30mm
6. Length: 1000m
7. Reel diameter: 1400mm
Description: Galvanized Steel Anti Twist Braid Rope / Anti Twist Wire Rope for Transmission Line Stringing
Anti twist braided wire rope with high strength hot dip galvanized steel quality air processed by the special process of special woven rope line. It has high strength, good flexibility, corrosion rust-proof, not to fight the golden hook, and difficult to tie, long life and so on. Tension applied to pay-off power lines construction, lifting equipment with the balance shaft and the tail rope of mine, port and other major lift crane wire rope does not rotate when the required place.
Data Sheet
|
Item no. |
Normal Diameter (mm) |
Structure |
Breakage tension(kN) |
Standard Length (m) |
Diameter of spool (mm) |
Total weight (kgs) |
|
YL9-12x19W |
9 |
12 Strands |
55 |
1000 |
850 |
294 |
|
YL10-12x19W |
10 |
12 Strands |
55 |
1000 |
850 |
|
|
YL11-12x19W |
11 |
12 Strands |
80 |
1000 |
1000 |
454 |
|
YL13-12x19W |
13 |
12 Strands |
120 |
1000 |
1100 |
642 |
|
YL16-12x19W |
16 |
12 Strands |
158 |
1000 |
1250 |
886 |
|
YL18-12x19W |
18 |
12 Strands |
210 |
1000 |
1400 |
1154 |
|
YL20-12x29Fi |
20 |
12 Strands |
250 |
1000 |
1400 |
1394 |
|
YL22-12X29Fi |
22 |
12 Strands |
320 |
1000 |
1400 |
1258 |
|
YL24-12x29Fi |
24 |
12 Strands |
360 |
800 |
1440 |
1474 |
|
YL28-12x29Fi |
28 |
12 Strands |
480 |
500 |
1600 |
|
|
YL30-12x29Fi |
30 |
12 Strands |
540 |
500 |
1600 |
|
|
YL20-18x19W |
20 |
18 Strands |
300 |
1000 |
1440 |
1368 |
|
YL22-18X29Fi |
22 |
18 Strands |
389 |
800 |
1440 |
|
|
YL24-18x29Fi |
24 |
18 Strands |
440 |
800 |
1440 |
|
|
YL28-18x29Fi |
28 |
18 Strands |
580 |
500 |
1600 |
1655 |
|
YL30-18x29Fi |
30 |
18 Strands |
658 |
500 |
1600 |
1900 |
