Product Details:
|
| Type: | Crimping Tool | Material: | Steel |
|---|---|---|---|
| Application: | Crimping | Output Pressure(KN): | 60 |
| Stroke(mm): | 12 | Oil Capacity(cc): | 145 |
| Crimping Range(mm2): | 10-120 | Weight(KG): | 3 |
| Name: | Portable YQK-120 Hydraulic Cable Lug Crimping Tool Up To 120mm2 | ||
| Highlight: | hydraulic wire cutter,hydraulic crimp tool |
||

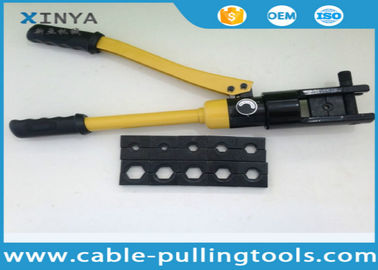

Portable YQK-120 Hydraulic Cable Lug Crimping Tool Up to 120mm2
Specifications
1) Light weight
2) High efficiency
3) Save time and labor
4) High quality
Characteristics
1. Compression mould can be replaced, quick and safe operation;
2. Compression configuration:10,16, 25, 35, 50, 70,95,120mm2
3. Press tools is suitable for DIN.AWG.JIS.
4. There is a safe protective equipment of "Kacha" voice when it reaches to high or low voltage.
5. It can be operated by one person ,it saves time and labor.
6. Pump is connected to the tools, it can turn 180 degree when pressed on the head.
Technical Data
| Product No. | Model Type | Output (KN) | Crimping Range(mm2) | Working Stroke(mm) | Packing Form | Oil Capacity (cc) | Weight(kg) |
| 80075 | YQK-120 | 60 | 10-120 | 12 | plastic box | 145 |
3 |
