Product Details:
|
| Material: | Steel For Winch Manufacturers For 5 Ton Petrol Engine Powered Fast Speed Winch | Item: | Winch Manufacturers For 5 Ton Petrol Engine Powered Fast Speed Winch |
|---|---|---|---|
| Type: | Gasoline Engine Power | Rated Power: | 50KN |
| Dimension(mm): | 1100*498*600 | Weight(kg): | 130 |
| Rated Loading Capacity: | 5 Ton | Max Pulling Speed: | 24m/min |
| Certification: | BV | Condition: | New |
| High Light: | cable stringing equipment,conductor stringing equipment |
||

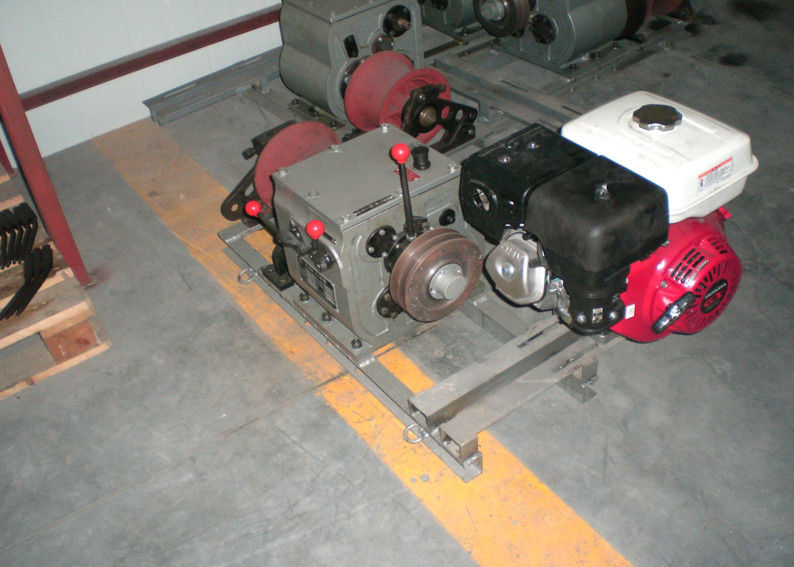

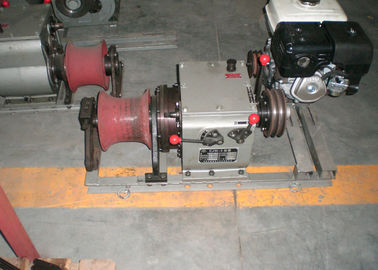

High Speed 5 Ton Gasoline Powered Cable Pulling Winch with Honda Engine
Winch Manufacturers For 5 Ton Petrol Engine Powered Fast Speed Winch is used for tower erection,pole setting,stringing wire in electrical power line construction.
Winch can be modified as per requirement, such as changing curve capstan into straight even
cylindrical shape and coming with steel rope.
Features
1 small size & compact structure.
The machine is now supported by gasoline engine, diesel engine, electric or imported gasoline engine.
2 high efficiency.
It reduces the labor intensity, improves working efficiency with less operators and convenient field command.
3 safe and reliable.
The machine has the interlocking brake device, accurate positioning, excellent braking performance , flexible usage, safety and trust.
4 widely used.
According to customers’ response and field investigation, this machine has wide usage, such as rod up, a vertical rod, the pull rod, line release, line reel, the bridge plate traction, lifting and other purposes.
Quality Control
We have the complete production equipments and professional production team to manage the whole process from producing to packing and shipping.All of the products will be 100% tested before the delivery to ensure the quality of our products.
Our Values
1,Take First-Class Quality as Target and First-class Service.
2,As Responsibility, To Succeed By Scientific Management.
3,Customer in Heart, Quality in Hand, Technology in the Lead.
Technical Data
Technical Data for 5 Ton Petrol Engine Powered Fast Speed Winch
| Model | Gear | Pulling Force(KN) | Pulling Speed(m/min) | Dimensions(mm) | Weight(kg) |
| JJM-5Q | Fast | 9 | 24 | 1100*525*600 | 130 |
| Mid | 15 | 14 | |||
| Mid | 30 | 9 | |||
| Slow | 50 | 5 |
