Product Details:
|
| Crimp Form: | Six Angle | Usage: | Crimping Cable |
|---|---|---|---|
| Crimping Range: | 4-70sqmm | Output: | 80KN |
| Working Stroke: | 10mm | Type: | Hydraulic Cable Crimping Plier |
| Accessories: | 4,6,10,16,25,35,50,70mm2 | Weight: | 2.8kg |
| Highlight: | hydraulic cable crimping tool,hydraulic crimp tool |
||
Product Features
Hydraulic crimping tool is a professional tool for crimping copper and aluminum lugs with different types, a wide range of crimping dies from 4-1000mm² to suit for different size demand. The main crimping shape is hesagonal, sepcial shape design is provided.
Product Description

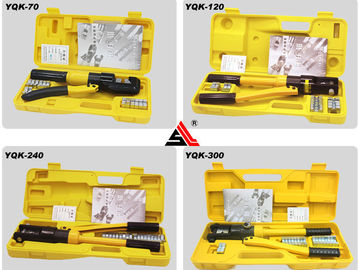

Model | YQK-70 | YQK-120 | YQK-240 | YQK-300 |
Range of application | 6-70mm2 | | | |
Crimping force | 6ton | 8ton | 8ton | 8ton |
Stroke | 10mm | 13mm | 16mm | 16mm |
Standard | 6,10,16,25, | 16,25,35,50, | 16,25,35,50,70,95, | 16,25,35,50,70,95,120,150, |
Weight | 2.5kg | 4.8kg | 4.8kg | 6.4kg |
Packaging size | 545*130*235mm | 545*130*235mm | 545*130*235mm | 755*130*230mm |
Package | Plastic case | Plastic case | Plastic case | Plastic case |
Feature | Hexagonal mould is adopted to ensure tight press connection, good electric conduction and non-easy shedding. | |||
Delivery time and Packing
Delivery :in 10-20days after accept payment
Packing :in plastic box or iron box
Payment :T/T best ,or paypal

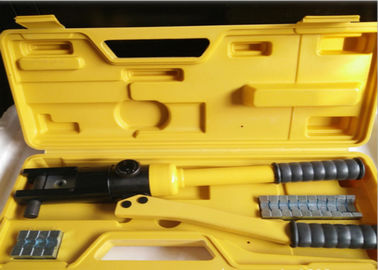

Detailed Image
Instruction Manual
