Product Details:
|
| Crimp Form: | Six Angle | Crimping Range: | 10-120sqmm |
|---|---|---|---|
| Output: | 120KN | Working Stroke: | 14mm |
| Weight: | 4.2kg | Mould: | 10 16 25 35 50 70 95 120 Sqmm |
| High Light: | hydraulic wire cutter,hydraulic crimp tool |
||
Hydraulic Cable Lug Crimping Tool For Crimping Terminal up to 120mm2 YQK-120
The YQK-120 is a professional compact tool for crimping copper and aluminum lugs
with different types, a wide range of crimping dies from 10 mm to 120 mm to suit for
different size demand. The main crimping shape of plier tool is hexagonal.
Reliable,Safe and Comfortable
High efficiency and Labor-saving

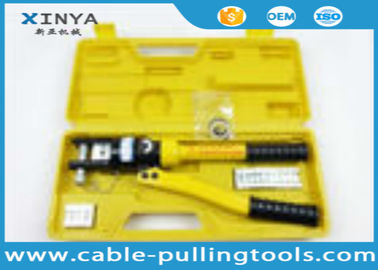

Suit various tasks - comes with 8 pairs of crimpling dies
Easy transport and Maintenance
Open cut design for convenient operation
The built-in safely valve will by-pass the oil supply when the maximum pressure is reached.
Excellent Trade Quality
Description
| Item No: YQK-120 | |
|
Crimping Range |
10-120mm^2 |
| Crimping Force | 8T |
| Crimping Type | hexagon crimping |
| Stroke | 16mm |
| Length | 470mm |
| Weight |
5kg |
| Package | plastic box |
| Crimping Dies | 10,16,25,35,50,70,95,120mm^2 |
| Features |
Hydraulic crimping tools is a professional tool for crimping copper and aluminum lugs with different types, a wide range of crimping dies from 4-1000mm^2 to suit for different demand. The main crimping shape is hexagonal, special shape design is provided. |

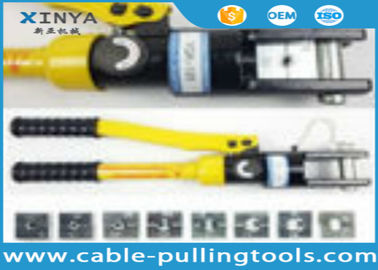

Detail picture of YQK-120
