Product Details:
|
Max Pressure(kg/cm2): | 700 | Weight(KG): | 5 |
---|---|---|---|
Oil Capacity: | 350CC | Size: | 420*260*260mm |
Remarks: | Manual | Name: | Hand Operated Hydraulic Pump |
High Light: | hydraulic cable crimping tool,hydraulic wire cutter |

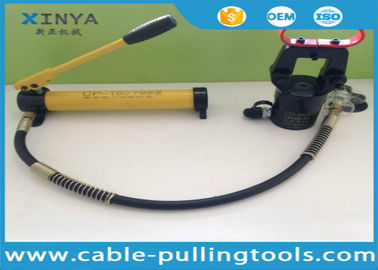

CP-180 Light Weight Hydraulic Hand Pump Manual Pump 70MPa For Connecting Crimping Head

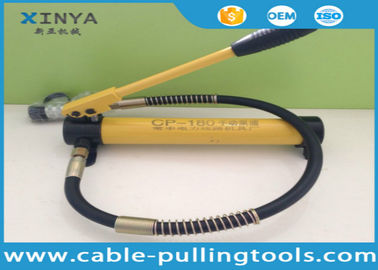

Manual Hydraulic Hand Pump CP-180
1.this single hole homework pump,high and low type ,producing oil amount fast even have no electricity,operation too convenient ,all the working pressure functions are same as battery operated.
2.this type have ride,manual operation mode,oil pipe enclose 2m,it can extend to purchase .
3.pressure stop the middle can keeping ,indoor design high pressure safe protection hydraulic pressure value.
Application
It can provide power for the cutting tool, the hydraulic compressor,punching machine and other construction machinery,which is operated in the wild field in electric power, railway, rescue, construction and other industries.
Characteristic
1. High pressure, hydraulic lightweight hand pumps feature a compact design and are available in single and two speed pump types
2. Durable glass-filled nylon reservoir and nylon encapsulated aluminium pump base for maximum corrosion resistance
3. Two-speed operation reduces handle strokes by as much as 78% over single speed pumps
4. Lower handle effort to minimize operator fatigue
5. Handle lock and lightweight construction for easy carrying
6. Large oil capacities to power a wide range of cylinders or tools
7. Non-conductive fiberglass handle for operator safety
8. Internal pressure relief valve for overload protection.
Features
1 High Pressure
2 Iron box packing
3 Use No.15 Antiwear hydraulic oil
4 Ultra Small
5 Easy Operation
6 Convenient to Carry
7 Wide Range of Application
Technical Data
Item NO. | Rated output | Oil capacity | Size | Weight | remarks |
CP-180 | 700kg/cn2 | 350CC | 420*260*260mm | 5kg | manual type |
CP-390 | 700kg/cn2 | 400CC | 420*260*260mm | 5.4kg | manual type |
CP-700 | 700kg/cn2 | 900CC | 680*185*185mm | 12kg | manual type |
CP-700-2 | 700kg/cn2 | 2100 | 710*185*190mm | 13kg | manual type |
Practical Application
Different Types
