| Brand Name: | XINYA |
| Model Number: | FYQ-400 |
| MOQ: | 1set |
| Price: | USD50-80/set |
| Delivery Time: | 7 workdays after payment |
| Payment Terms: | L/C, T/T, |
Introduction
It is specially designed for inside and outside power transmission and distribution project, various kinds of connecting terminals, overhead and underground cabling.
The oil pipe coupler fitted with PT 3/8 '' thread.

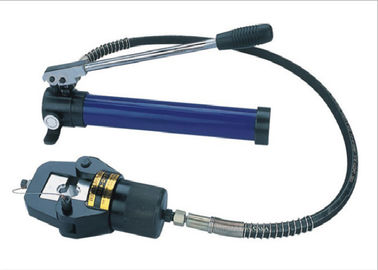

To be worked with pedal pump, manual pump and electric driven hydraulic pump.
1. it is suitable for outside and inside project of the distributor house,it is the special tools for all kinds of connecting and kinds of building over head cable.
2. it pressed tightly on 10kv-500kv high voltage cable casing pipe,clips nared ends hexagon shape.
3. we will develop the titanium alloy material to decrease the work deal.
4. welcome to order special specification tools.
Hydraulic compression tool, use with pump.
· It accepts all U type dies currently manufactured for 50 ton tools on the market.
· Consult your connector manufacturer for exact cable, connector and die combinations.
· When ordering dies, specify the manufacturer's die and connector numbers.
· This tool was designed to accommodate U-type dies for applying compression fittings to copper, aluminum and ACSR conductor.
· Most of the internal hydraulic components are the same as the FYQ-630B.
· This tool was designed for the electrical contractor and electric utility lineman who is confronted with larger cable diameter and larger connectors.
Features

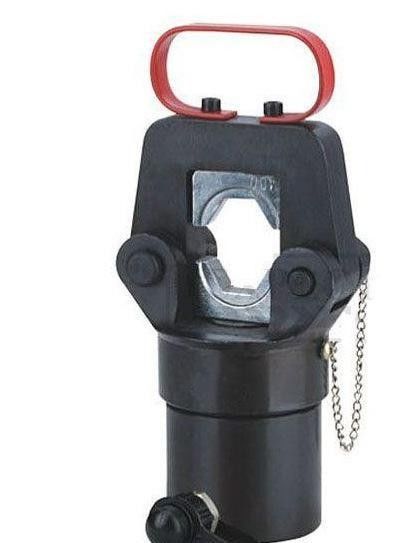

1) Split hydraulic crimping head can work with hydraulic pump. The working head is manufactured by CNC machine, it secures high precision.
2) It is suitable for outside and inside project of the distributor house, it is the special tools for all kinds of the connecting and building over head cable.
Technical Data
| Crimping range | 16-400mm2 |
| Crimping force | 16T |
| Stroke | 22mm |
| Crimping type | hexagon crimping |
| Accessories | 16,25,35,50,70,95,120,150,185,240,300,400mm2 |
Application
