Product Details:
|
| Type: | Busbar Processing Machine | Rated Pressure: | 63Mpa |
|---|---|---|---|
| Power: | 220V 50HZ 750W | Application: | Bending , Cutting , Punching |
| Punching Force: | 31T | Bending Force: | 16T |
| High Light: | busbar cutting machine,busbar punching machine |
||

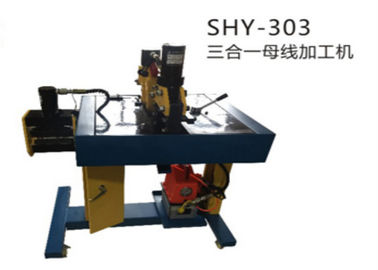

SHY-303 Multi Function Hydraulic Bus bar Processor Machine for Cutting,Punching and Bending
Application :
This processor is suitable for making large electric cabinet ,power distribution cabinets ,switch
cabinets and power transmission and distribution construction engineering construction site use.
Feature :
This machine is with reference to foreign advanced products ,combined with domestic practical
situation , to provide the efficiency and guarantee of safety requirement and the design of form a
complete set of equipment .
Most suitable for making large electric cabinet and transmission and distribution construction
project fields use .High flexibility , small volume , big power , high production capacity and high
work efficiency .Low noise ,harmless processing . Finishing product is beautiful and won't cause
pollution to the environment .
Technical Data
| shy-303 | SHY-303 |
| Normal Operating Pressure(Psi) | 1000,63MPa |
| Power Souce(12V) | 750W/220V/50Hz |
| Output of cutting machine(KN) | 150 |
| Cutting Range(mm) | copper and aluminum≤ 150*10 |
| Output of hole punching machine(KN) | 310 |
| Hole punching range(mm) | copper 10mm,steel 8mm,aluminum 12mm |
| Punch Standard Mould(mm) | 10.5,13.8,17,20.5 |
| Output of bending machine(KN) | 160 |
| Bending Range | 150*10 |
Busbar Punching Tool
| Punching force | 31T |
| Thickness of sheet | 12mm |
| Depth of throat | 110mm |
| Accessories | Φ10.5mm,13.8mm,17.5mm,20.5mm |
Busbar Cutting Tool
| Cutting Force | 15T |
| Thickness of sheet | 10mm of copper sheet |
| Width of sheet | 150mm of copper sheet |
Busbar Bending Tool
| Worked Pressure | 16T |
| Stroke | 200mm |
| Capacity |
150*10mm |
| Bending | Flat bending 0-90° Straight bending 0-90° |
Each Part
