Product Details:
|
Type: | Bending Cutting Machine | Application: | Cutting |
---|---|---|---|
Weight: | 20/27kg | Rated Output: | 230/270KN |
Package: | Wood Case | Working Stroke: | 50/70mm |
High Light: | busbar cutting machine,busbar punching machine |
Hydraulic Busbar Processing Machine With Bending Cutting Punching
Characteristic
The unilateral type structure, cutting in larger power, but it does not waste materials.
The blade adopts alloy tool steel forging fine grinding, the incision is neat, no burr and no deformation.
During cutting, the copper and aluminum row should not be fixed, any position is OK.
The pressing device is equipped with the blade side in order to prevent the tilt of copper and aluminum row.
It can use with pump CFP-800-1,CP-700,EHP-70ZS,EHP--63A.
Specifications
1. Suittable for pinching holes onLandHshape iron plate,copper&aluminum busbars
2. Flat pedestal to provide steadiness in operation.
3. Punch dies made of high carbon tungesten steel and not easy towear off.
4. Easy to carry and simple to operate.
Description and function
1. manual hand pump operated, for copper pipe, steel tube, plastic water pipe
- It is suit for common water pipe, wire pipe, carbon steel pipe, conduit tube, bending the angle 90
- The upper plate of the new design is cut by one time, it won’t be broken.
This machine could bend pipes toward any direction you want;the largest bending angle is 90°
2. Suitable for use in bending brass pipes,steel pipes,hydraulic pipes,coated and uncoated pipes.
3. We can make moulds in other specifications according to customers requirements
Features
Remote Control Style: An external hydraulic pump is required (Capable of providing 700Bar working pressure). Foot hand and electric hydraulic pumps are all available in our products range
Sharp Cutting Blade: Ensure fast and clean cutting
Cutting Surface: Smooth, without burr
Portable: Can be fixed or taken to working place according to specific application
Steel Case Package: For easy carrying and protect tools well
Technical Data
Product No. | Model Type | Output (KN) | Operating stroke(mm) | Cutting Rangemm(mm) | Weight(kg) |
80109 | CWC-150 | 230 | 50 | ≤150*12 | 20 |
80110 | CWC-200 | 270 | 70 | ≤200*12 | 27 |

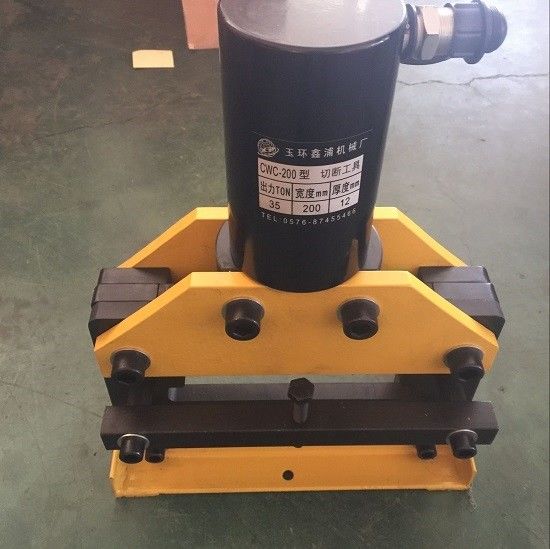

Detail Picture
